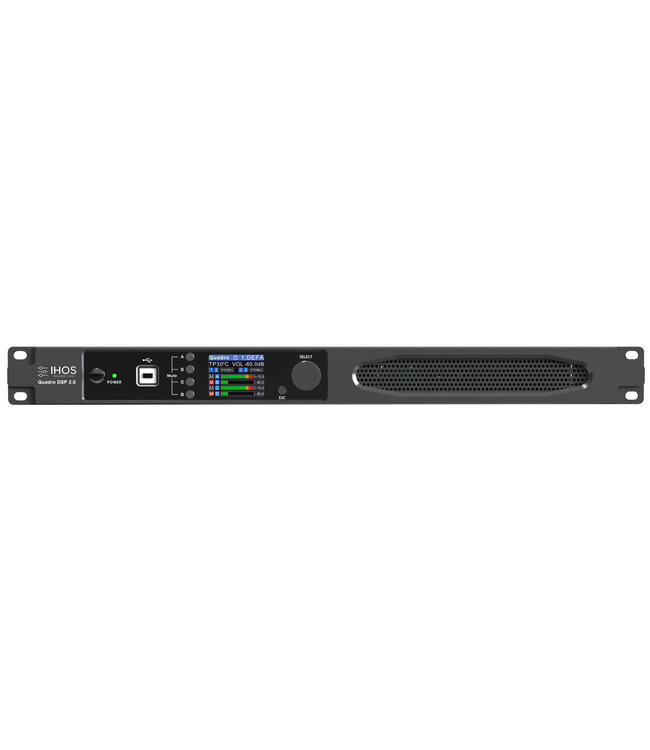

Quadro DSP 2.0, is a DSP digital amplifier of 4*500W@4Ω / 4*300W@8Ω ,Bridge 2*1000W@8Ω, support constant 70V/ 100V(1000W@10Ω). It can monitor the status of amplifier and adjust the function of DSP in real time and remotely. DSP functions of built-in: noise gate, matrix mixer, PEQ, crossover, delay, compressor etc.
It can be used in: Meeting Rooms, Medium/ Big conference rooms, Schools, Restaurants, Shopping malls.
- Input: PEQ 15 PEQS
- Output: PEQ 10 PEQS
- Crossover: Butterworth, Bessel, Linkwitz 6~24
- Output Delay: Input Delay:2*100ms / Output Delay:4*20ms
- Output Compressor: Knee, Threshold, Attack, Ratio, Release
- Output Limiter: Threshold-90dBu~21dBu, Release 1~2895ms
- DSP Presets: 30 (one for factory preset)
- Control port: TCP/IP, USB, RS485, RS232.
- Network: 2*RJ45 TCP/IP, 1000base-T/ 100base-TX
- Channels: 4
- Power: 4*300W@8Ω 4*500W@4Ω
- Bridge Power: 2*1000W@8Ω

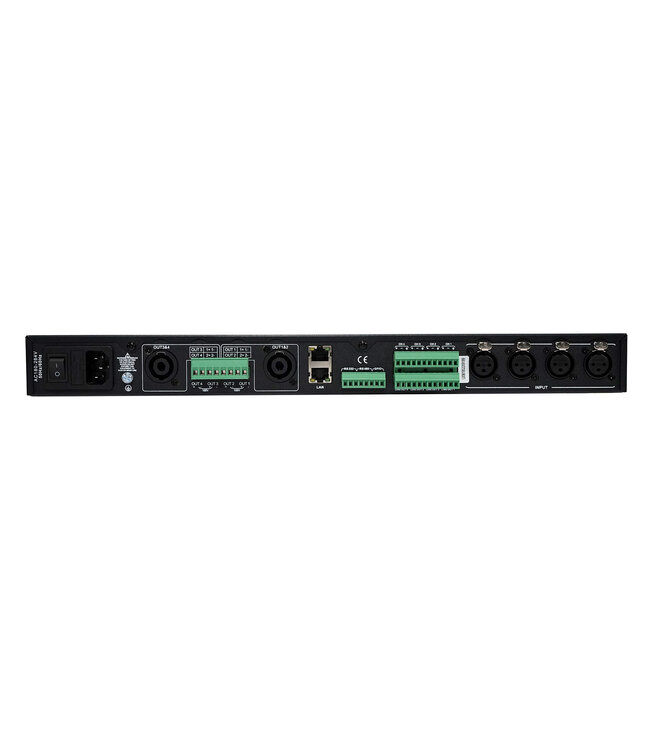

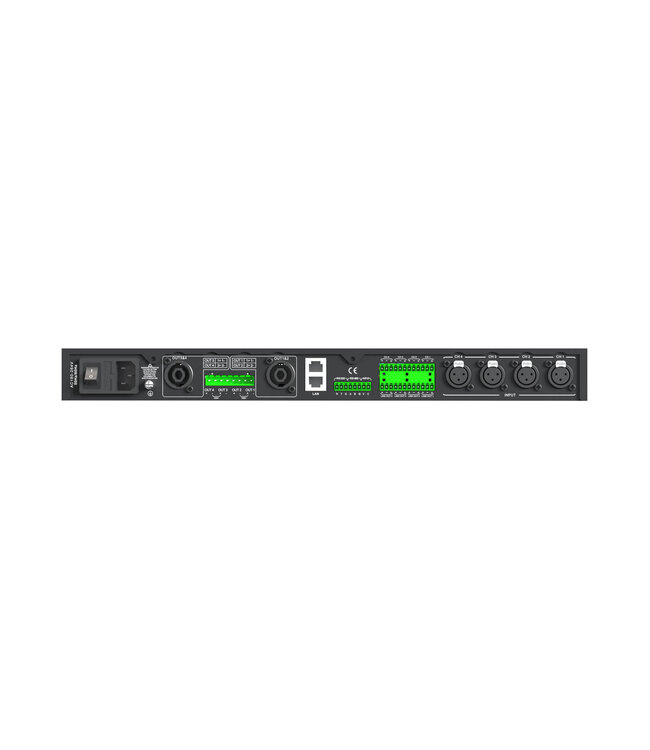

- Input Interface: Balance 4*XLR；Unbalance 4*RCA
- Output Interface: 4*Terminal
- Cooling Mode: 2*fans intelligent control
- Gain 6dBu ：30dB (29.5 times) ；0dBu ：36dB (31. 1 times)
- Maximum Input Level 6dB ：16dBu (4.9V)
- SNR 6dBu ：94dB ；0dBu ：94dB
- Frequency Response 20Hz ~ 20kHz (±0.5dB)@1W ，8Ω
- THD+ N: <0. 1%@1W-full power
- Sample Rate: 48K/24bit
- Channel Isolation: <-70dB
- Work Mode: Stereo, Bridge, Mono, free Matrix
- Remote Control: Standby, Call, DSP functions
- Amplifier Monitor: Temperature, Power, Current and Voltage
- Constant Voltage and Resistance: 100V 、70V 、8Ω 、4Ω
- Display: 320x320pixel, IPS LCD
- Protection Mode: DSP limiter、High temperature, DC, high frequency, short circuit, back EMF, peak current limiter、Back EMF、Surge current limiter, startup delay, power circuit breaker
- protection, power over voltage / under voltage protection.
- PC Software: MConsole
- Weight: 4Kgs.
- Size: 483 x 300 x 445 mm.
- Power Input: 110 - 264 Volt AC, 50/60 Hz.
