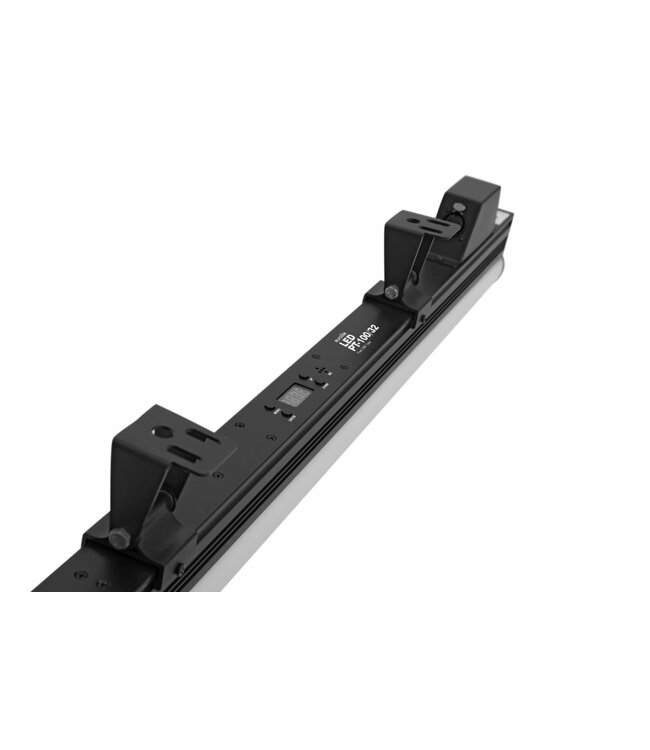

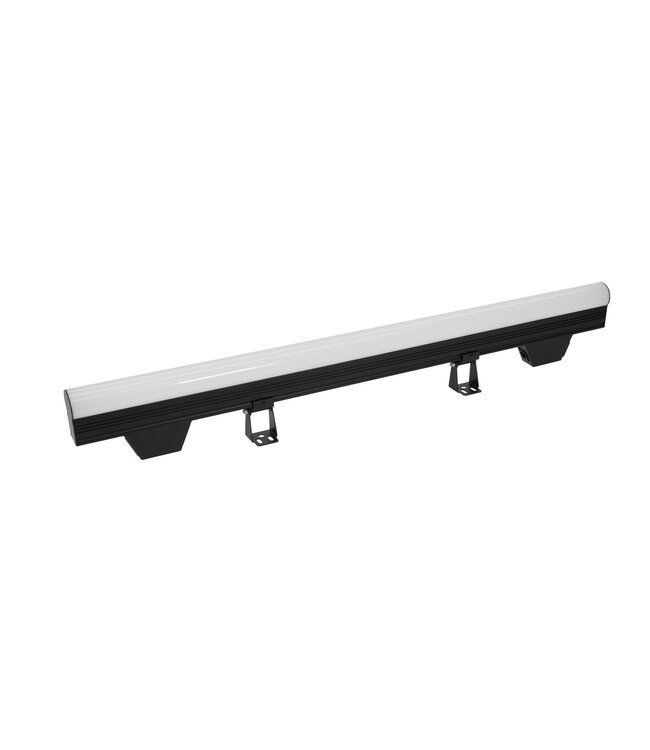

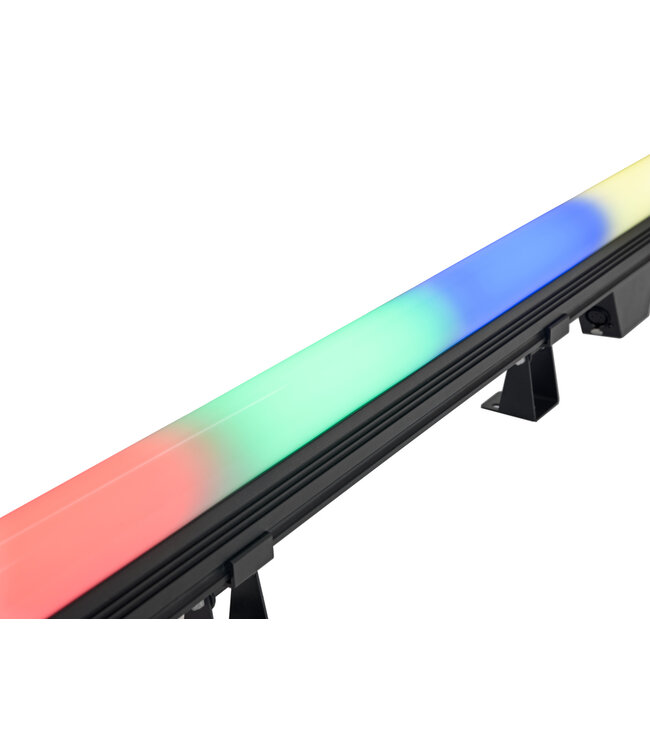

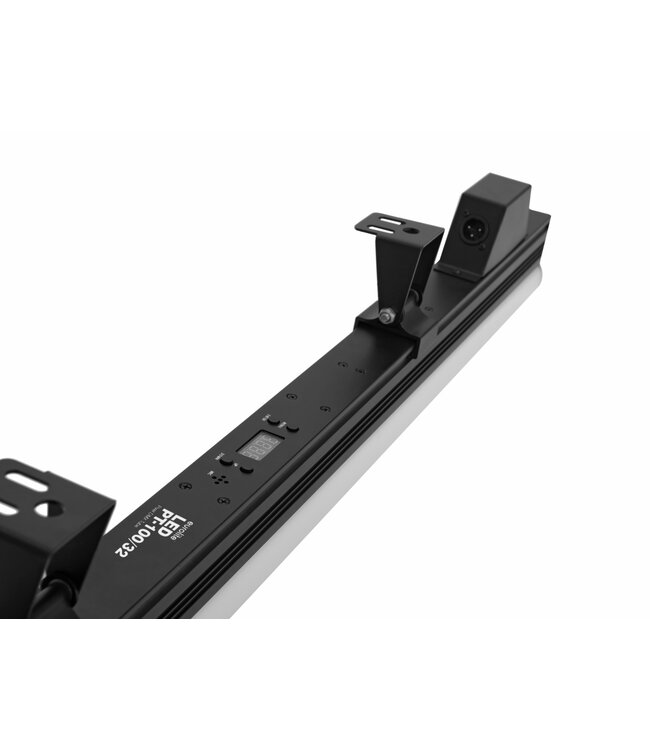

DMX controlled pixel tube with RGB color mixing
- Tube with 96 high-power RGB LEDs (3in1) for washlight effects
- Subdivided into 32 pixels (illumination units à 3 LEDs) which can be controlled individually by DMX
- Functions: static colors, automatic color change, internal programs with variable speed, dimmer settings
- Built-in auto and music show programs
- Direct color selection for 17 preset colors
- DMX and power terminals intelligently designed for easy wiring
- Addressing and setting via control panel with 4-digit LED display
- Metal housing with swivel mounting brackets
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
- Can be operated in 3; 5; 8; 48; 96 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; DMX; Sound to light via Microphone; Master/slave function
- Is in EUROLITE LED PC-Control 512 software already preprogrammed
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
30 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: |
1 x P-Con (gray), mounting version |
| Lamp type: |
LED lamp |
| LED: |
96 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate: |
20 Hz |
| DMX channels: |
3; 5; 8; 48; 96 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; EUROLITE LED PC-Control 512 software |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Housing color: |
Black |
| Display type: |
4 digits 7-segment LED display |
| Dimensions: |
Length: 99,9 cm
Width: 5,9 cm
Height: 15,3 cm |
| Weight: |
2,10 kg |
