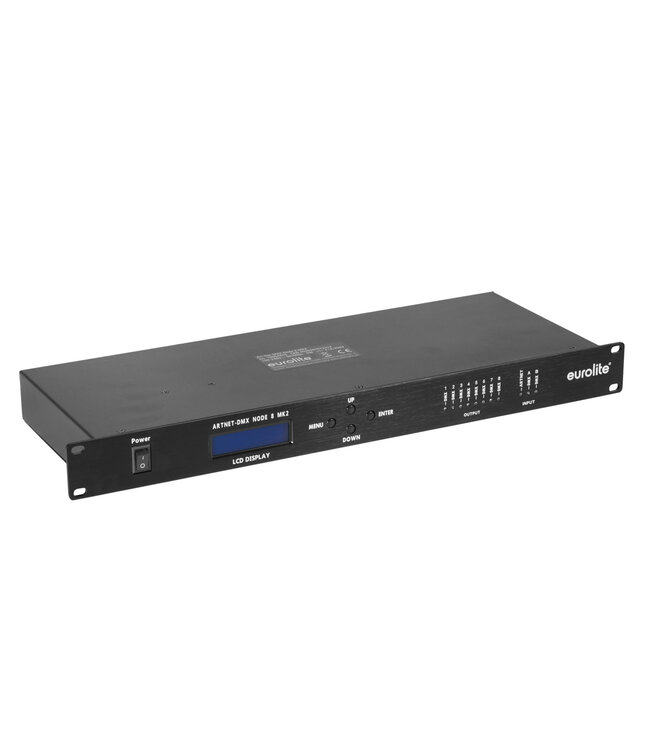

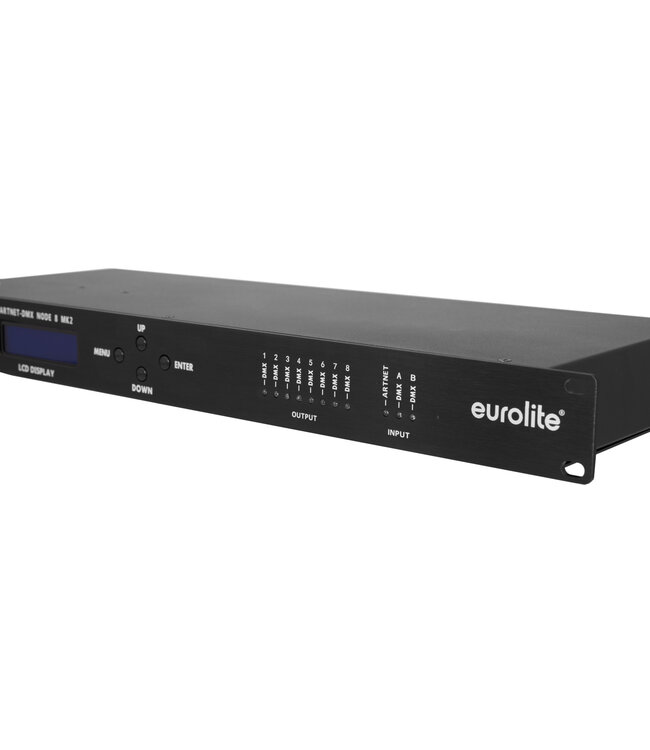

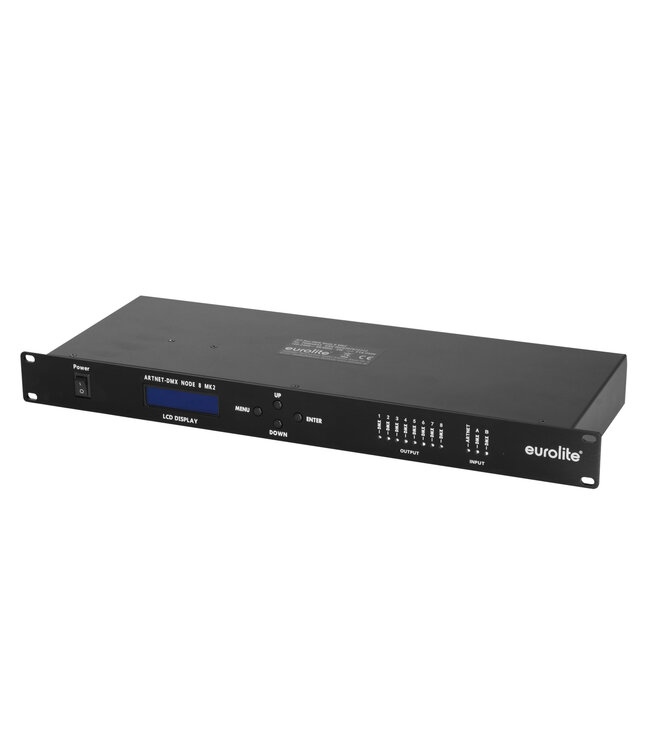

Art-Net interface distributes 8 universes to XLR

• Distributes Art-Net data to 8 DMX512 universes (4096 channels)
• Parallel DMX input possible (1024 channels)

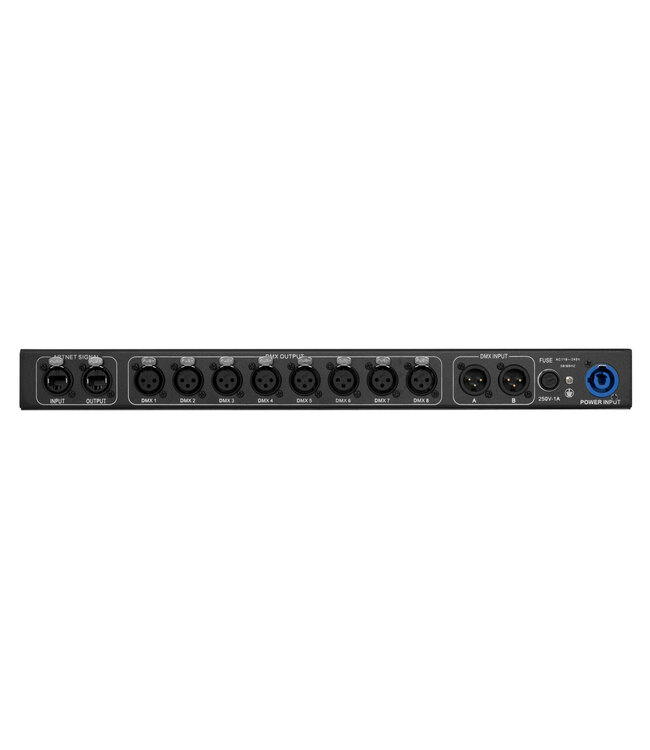

• 8 optically isolated XLR plugs (3-pin) for DMX output
• 2 XLR jacks (3-pin) for DMX input
• Variable data routing capabilities for all DMX outputs
• 2 x Ethernet in/through port
• Serial connection possible

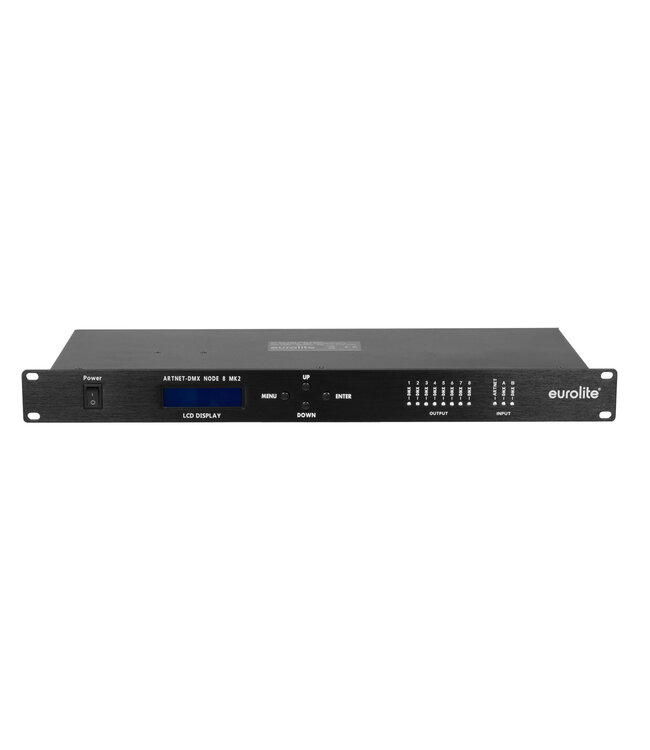

• User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
• LED indication for functions
• Splitter operation possible
• Rack installation 1 U
• Controlling by ArtNet
• The device can be connected via RJ45 (F) mounting version to the PC
• (19") 48.3 cm rack installation
