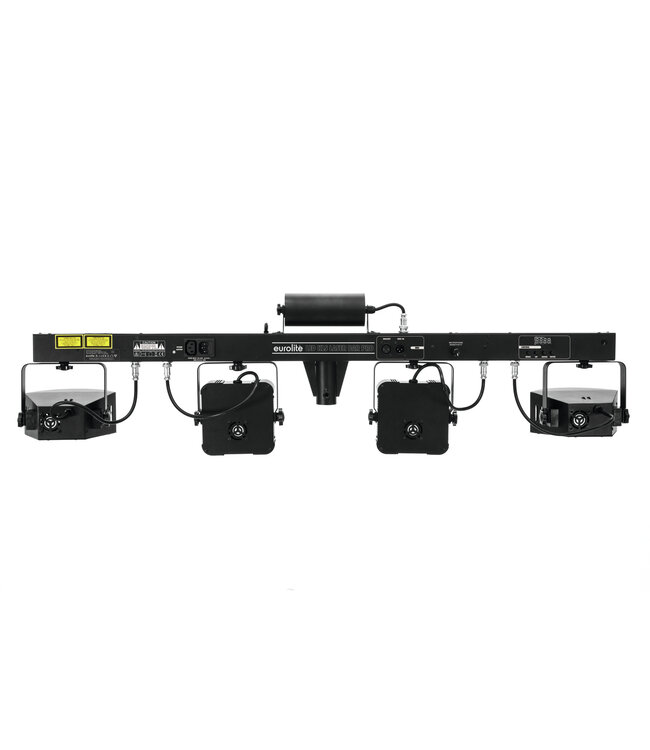

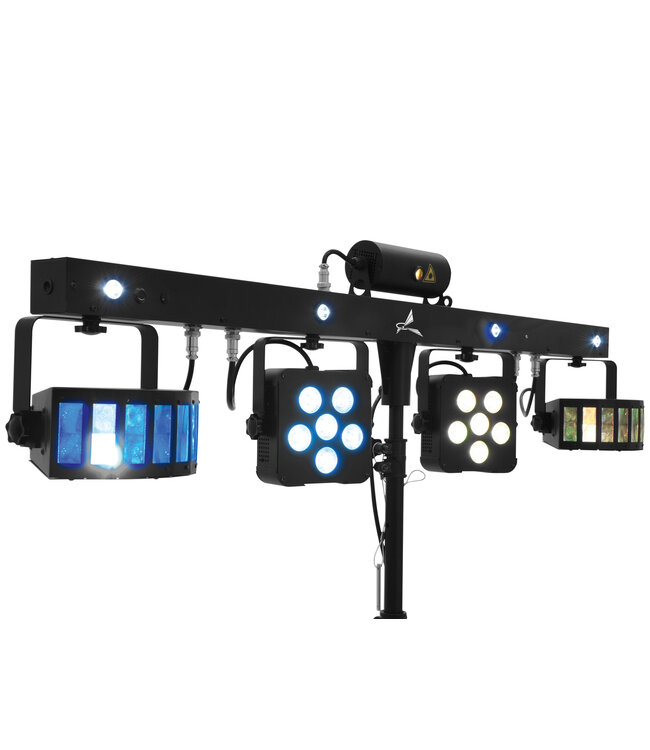

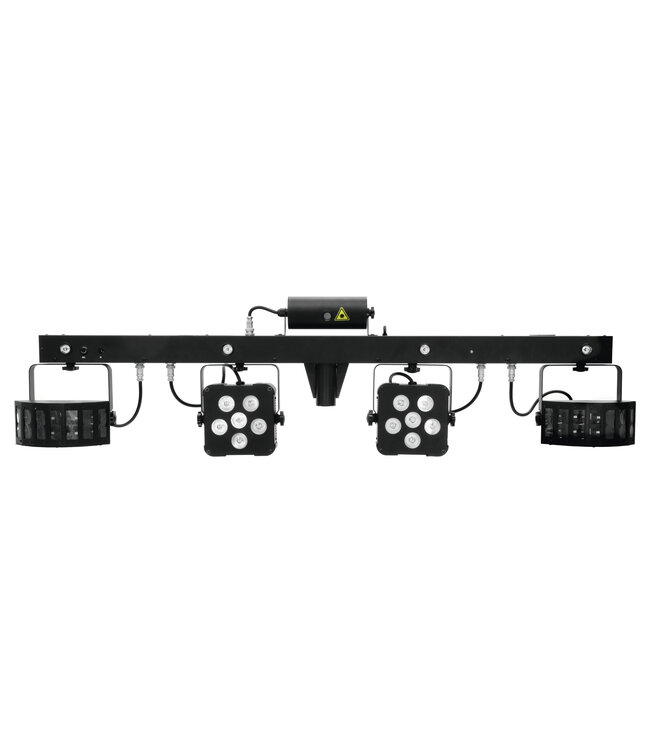

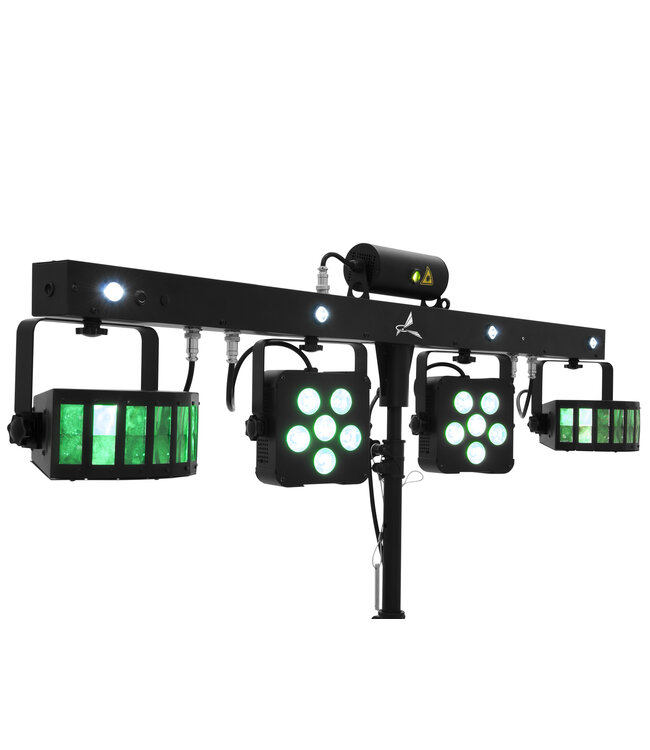

Bar with 2 strong derbies and spots, white/UV strobe LEDs, laser (RG, 2M)
- 4-in-1 DMX light effect bar with laser, 2 rotating LED derbies, 2 LED spots and strobe LEDs in white and UV
- Enhanced version with very high brightness and additional UV LEDs
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- Ultra-light ideally suited for mobile use
- Crossbar with integrated DMX control unit and stand sleeve
- Comes pre-assembled with practical transport bag
- Convenient control via wireless foot switch and IR remote control
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derbies for mirror ball effects with 6 bright LEDs (red, green and blue) each
- 2 spots with 6 bright 3in1 LEDs (red, green and blue) each
- Strobe effect with 4 bright 2in1 LEDs (white and UV)
- 39 built-in auto and music show programs that include all 4 effect units
- Addressing and setting via control panel with 4-digit LED display
- Swivel mounting brackets for truss mounting
- When fog is used, this effect becomes especially attractive
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- Can be operated in 3; 5; 10; 28 CH mode
- The device is cooled by cooling fan
- Controlling by Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch; Master/slave function
- Is in EASY SHOW; Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
- Effect: Multi beam effect; Strobe effect; laser
- For application areas such as: Wedding/gala
spotlight
- LED: Spot 2 x separate controlling each with 6 x high-power 6 W 3in1 TCL RGB (homogenous color mix)
light effect
- LED: Multi beam effect 2 x separate controlling each with 6 x high-power 2 W RGB
bar
- LED: Strobe effect 6 x separate controlling with 4 x high-power 2 W 2in1 BCL CW/UV (homogenous color mix)
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
150 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Power output: |
1 x IEC connector (F) mounting version |
| Fuse: |
5 x 20 mm, T 3,15 A |
| Lamp type: |
LED lamp |
| DMX channels: |
3; 5; 10; 28 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch; Master/slave function; EASY SHOW; Light J Software; EUROLITE LED PC-Control 512 software |
| Housing color: |
Black |
| Dimensions: |
Width: 1,32 m Depth: 14,5 cm Height: 32 cm |
| Weight: |
10,75 kg |
| Noise classification: |
Class 2 (slight noise) |
| Power cord |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Cable length: |
3 m |
| Laser |
| Laser class: |
Class 2M |
| Laser color: |
RG |
| Laser module: |
R red 100 mW 650nm G green 30 mW 532nm |
| Spotlight |
| LED: |
Spot 6 x high-power 6 W 3in1 TCL RGB (homogenous color mix) |
| Flash rate: |
0 - 30 Hz |
| Beam angle: |
13° |
| Beam angle (1/2 peak): |
13° |
| Beam angle (1/10 peak): |
20° |
| Light effect |
| LED: |
Multi beam effect 6 x high-power 2 W RGB |
| Flash rate: |
0 - 30 Hz |
| Bar |
| LED: |
Strobe effect 4 x high-power 2 W 2in1 BCL CW/UV (homogenous color mix) |
| Flash rate: |
0 - 30 Hz |
