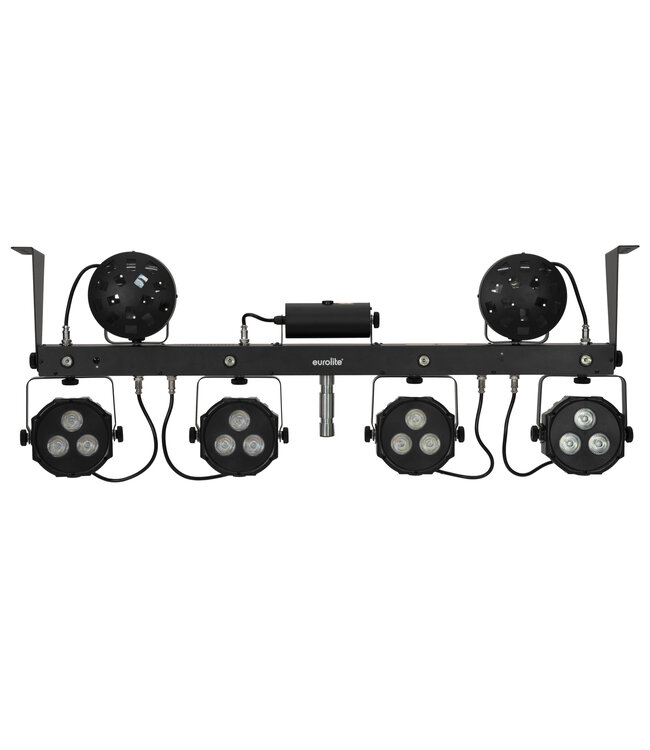

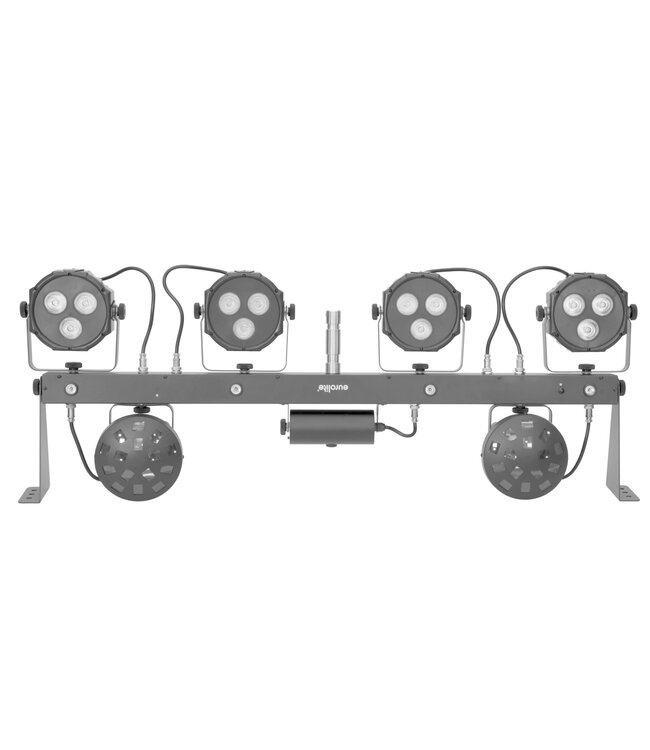

Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag
- DMX light effect bar with laser, 2 rotating LED mushrooms, 4 LED spots and UV strobe LEDs
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating mushrooms with four bright LEDs (red, green, blue and warm white) each
- 4 spots with four high-power RGB/WW LEDs (4in1) each
- 4 UV strobe LEDs
- Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
- Ultra-light ideally suited for mobile use
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- Swivel mounting brackets for truss mounting
- Comes pre-assembled with practical transport bag
- Convenient control via included IR remote control or optional wireless foot switch
- Sound-control via built-in microphone with sensitivity control
- LED mushrooms and LED spots individually tiltable and controllable
- Spots with 7° beam angle
- Auto, music, master/slave and DMX mode
- Brand-new software design with smart programs
- 26 built-in auto and music show programs that include all 4 effect units
- Addressing and setting via control panel with 4-digit LED display
- Brightness manually adjustable via rotary control
- Supports QuickDMX - the wireless DMX system by Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- When fog is used, this effect becomes especially attractive

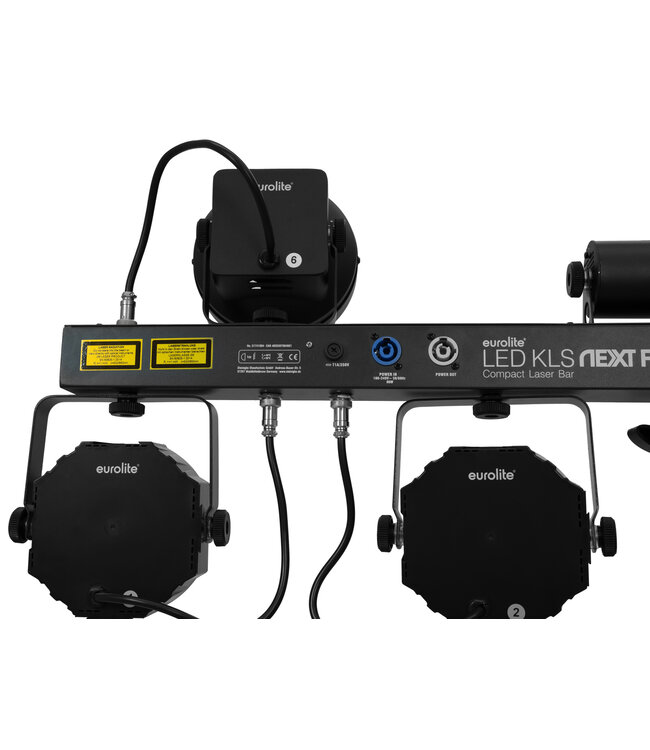

- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: Spot 3 x high-power 4 W 4in1 QCL RGB/WW (homogenous color mix)
- LED: Multi beam effect 4 x high-power 3 W RGB/WW
- LED: Strobe effect 4 x high-power 1,5 W UV
- Can be operated in 6; 8; 11; 21; 25; 29 CH mode
- The device is cooled by cooling fan
- Controlling by QuickDMX via USB (optional); DMX; Stand-alone; Sound to light via Microphone; IR remote control; Wireless footswitch (optional)
- Effect: Laser; UV effect; multi beam effect
- For application areas such as: Wedding/gala
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
90 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Cable length: |
3 m |
| Power output: |
1 x P-Con (gray), mounting version |
| Fuse: |
T 1 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
Spot 3 x high-power 4 W 4in1 QCL RGB/WW (homogenous color mix)
Multi beam effect 4 x high-power 3 W RGB/WW
Strobe effect 4 x high-power 1,5 W UV |
| Flash rate: |
0 - 30 Hz |
| DMX channels: |
6; 8; 11; 21; 25; 29 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
QuickDMX via USB (optional); DMX; Stand-alone; Sound to light via Microphone; IR remote control; Wireless footswitch (optional) |
| Beam angle: |
7° |
| Beam angle (1/2 peak): |
Spot 7° |
| Beam angle (1/10 peak): |
Spot 20° |
| Housing color: |
Black |
| Attachment system: |
TV spigot Ø 28mm |
| Dimensions: |
Width: 1,11 m
Depth: 11 cm
Height: 41 cm |
| Weight: |
10,50 kg |
