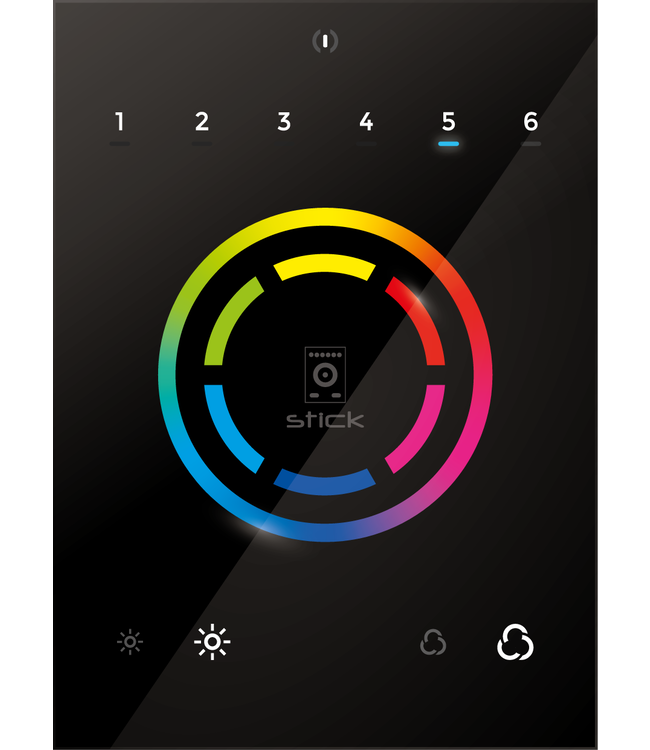

The STICK-CW4 programmable lighting controller, for RGB and RGBW lighting, has been designed around a touch sensitive color wheel. The controller is USB programmable from a PC or Mac using the ESA2 software.

Up to 36 scenes can be stored within the controller and directly recalled via six touch-sensitive scene buttons. A button located in the center of the color wheel can be used to jump between scenes or reset a color change.

•  DMX stand alone controller
• Compatible with any DMX fixture or DMX LED driver
• Ready-to-use (pre-loaded with 8 scenes and 170 RGB
  fixtures)
• Sleek, black glass design which sits 11mm from the wall
• Color palette (can also be used for scene selection)
• 12 touch-sensitive buttons. No mechanical parts
• Touch-sensitive wheel allows for accurate color selection
• Built-in flash memory for storing programs
• Up to 36 dynamic or static scenes
• 1024 DMX channels. Control 340 RGB fixtures
• Clock and calendar with Sunrise/Sunset triggering
• Wi-Fi network communication. Control lighting remotely
• USB connectivity for programming and control
• 8 dry contact trigger ports
• OEM customization of the color palette and logo
• Windows/Mac software to set dynamic colors/effects


• Input Power: 5-15V DC 0.6A
• Output Protocol: DMX512(x2)
• Programmability: PC, Mac
• Available Colors: Black / White
• Connections: USB, 8 dry contact ports, open-drain output (for relay)
• Memory: In-built flash
• Temperature Battery: -10 °C - 45 °C LIR1220
• Mounting: Single or double gang wall socket
• Dimensions: 146x106x11mm
• Weight: 200g
• Standards: EC, EMC, ROHS
