Set with Laserworld Showeditor 2015 and Laserworld ShowNET Network Interface

• Software features of Laserworld Showeditor:
• Internal resolution XY: 32 Bit
• Resolution color RGBI: 8 Bit
• Number of tracks on timeline: 48 tracks on 16 track pages + 18 effects each
• Matrix Mapping: 16 track page mixes to up to 16 ILDA interfaces
• Number of output interfaces at control PC: no limitation
• Number of interfaces with output at the same time: 16
• Output speed max.: ~150.000 points per second
• Bitmap Tracing: Yes
• AI File Import: Yes, file version 5
• ILDA Import / Export: Single frames and whole shows
• ILDA Export protection: can be locked to license
• SMS output on Laser: Yes (Siemens TSM Module TC35i or TXT file)
• Running text: Yes
• Morphing text: Yes
• Fonts: any TTF + 3 extra fonts

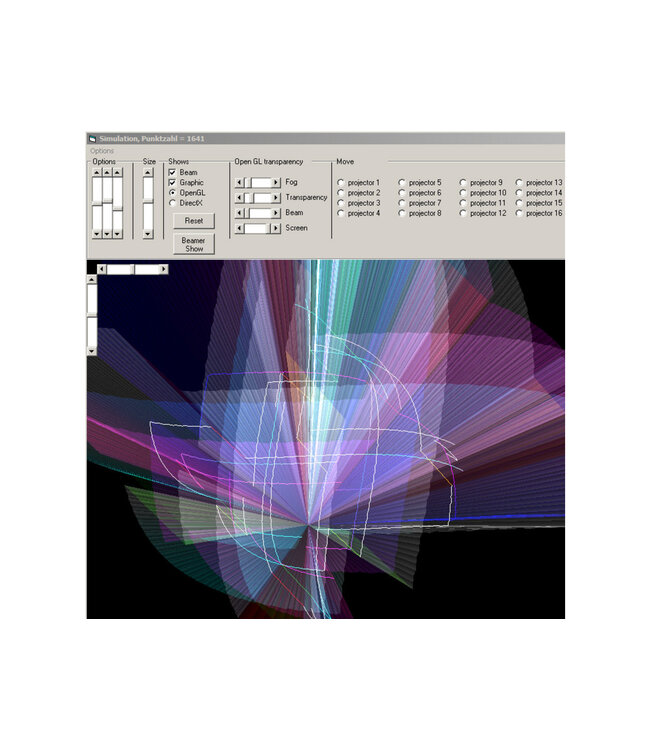

• Simulation: Yes (either DAC or simulation)
• Real time output to laser: Yes
• Multi Screen support: Yes (window positions are saved)
• Skin (custom colors for software look): Selectable
• Individual scanner settings per output interface: Yes (including pps rate)
• Individual color correction per output interface: Yes, TTL, Analog, RGB, 3-point
• Individual mapping per output interface: Yes, TTL, Analog, RGB, 3-point
• Individual geometric correction per output interface: Yes, invert X/Y, distortion, Size, position, etc.
• Safety zones / beam attenuation: Yes, per output interface. 2 with soft fading
• Individual names per output interface: Yes
• Settings can be saved: Yes
• Virtual hardware for simulation etc.: Yes
• Playlist support: Yes
• Auto Monitor Standby: Yes
• Video support: Yes, video as basis for timeline shows output via second monitor channel
• Free shows: more than 250 Free shows supported
• Commercial shows: available online
• X/Y scanner output with 12 bit resolution (4096 different positions on each axis)
• Up to 6 color output with 8 bit resolution (256 different values per color channels): red, green, blue, intensity, user defined 1, user defined 2
• DMX512 input and output (non-isolated)
• 10/100 Mbit Ethernet port
• Flexible IP address setting: fixed address, DHCP or AutoIP
• Micro-SD card slot for ILDA file playback (ILDA format code 5 RGB)
• Built-in laser figures for stand alone operation
• Stand alone operation via DMX control or auto trigger
• Maximum scan speed of up to 150kpps
• Up to 16 devices can be used in parallel for multi-projector laser shows
• Controlling by DMX; ILDA
• The device can be connected via RJ45 (F) mounting version to the PC
