Stage Panel 16
Floodlights and mobile all-rounders
Moodlight for stages, TV studios or theaters, that is what the Eurolite Stage Panels provide you with. The middle range floodlights color in the respective location quickly and beautiful – without acting like a real wide flood.
Features

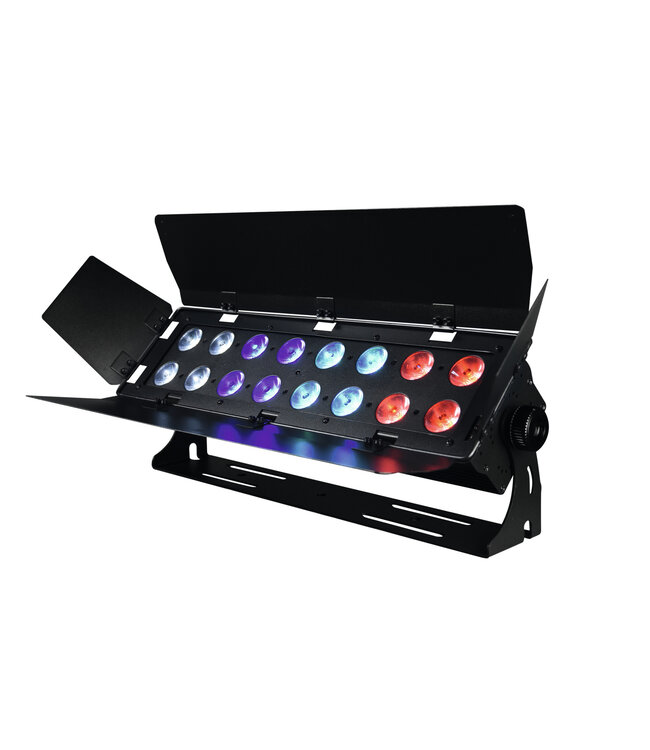

The Stage Panel 16 is equipped with 16 LEDs and features a very good RGBAW+UV color mixture. It has a beam angel of 32°. You can control the LEDs in 4 segments and thus create diversified effects. The 4 barn doors not only help you avoid glaring the audience: They also serve as transport.
Small effort, big effect
The Stage Panels are great spots, if you like to be mobile and produce quite some light with only a few devices. They are made for bands, mobile DJs or solo entertainers. And as they work flicker free and very silently, TV studios and theaters will have fun with them as well.
Light effect bar with RGBAW+UV color mixing, with 5-pin QuickDMX connector
- 16 high-power 12 W RGBAW+UV LEDs (6in1)
- 4 segments for dynamic running lights
- Built-in auto and music show programs
- Direct color selection for 26 preset colors
- Color temperature adjustable in 6 steps (2700-8000 K)
- Stepless RGBAW+UV color blend, color change, color fade, dimmer and strobe effect
- 4 barn doors to avoid blinding the audience and for protection during transport
- Addressing and setting via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control EUROLITE IR-7
- Supports QuickDMX - the wireless DMX-system from Eurolite
- Built-in phantom fed socket for QuickDMX receiver (see accessories)
- Swivel mounting bracket
- Power connection via P-Con jack and included power cable with safety plug
- LED: 16 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Can be operated in 2; 3; 5; 6; 8; 11; 24; 32 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); Master/slave function
- Is in Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE already preprogrammed
- Flicker-free projection
- Effect: Strobe effect; UV effect
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
70 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: |
1 x P-Con (gray), mounting version |
| Lamp type: |
LED lamp |
| LED: |
16 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
2; 3; 5; 6; 8; 11; 24; 32 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); Master/slave function; Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE |
| Beam angle: |
23° |
| Beam angle (1/2 peak): |
23° |
| Beam angle (1/10 peak): |
42° |
| Housing color: |
Black |
| Dimensions: |
Width: 59,1 cm
Depth: 19,9 cm
Height: 30,3 cm |
| Weight: |
5,35 kg |
