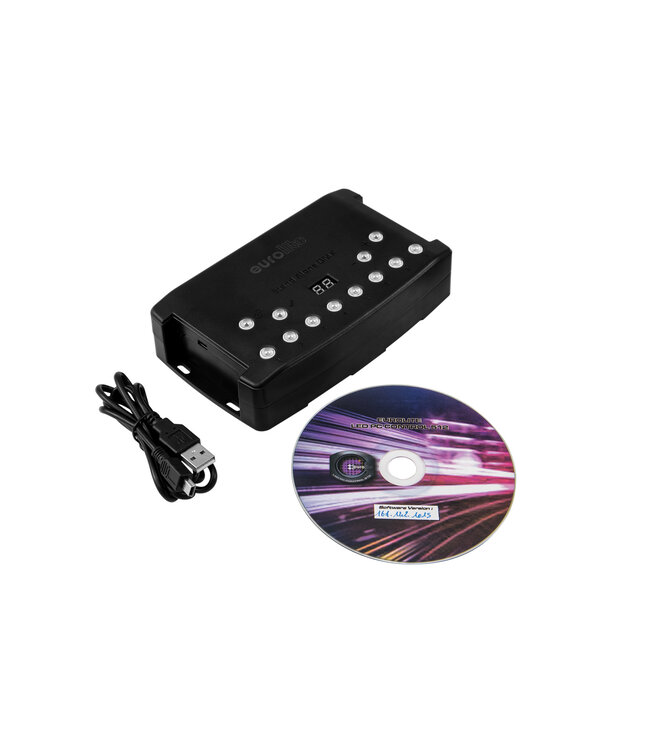

USB-interface with software for lighting programming and control with the computer
- Stand-alone player for creating and controlling light shows
- Incl. DMX control softwares LED PC Control and Pro Control to program your shows
- Write a show in to the stand-alone memory of the player and play back sequences without a computer
- 1 Artnet universe
- 4 MB of internal memory (min. capacity: 4000 steps/512 channels)
- 8 illuminated trigger buttons
- Scene selection with next and previous buttons
- Speed and dimmer adjustment for each scene in stand-alone mode
- Real-time clock triggering for each scene (day, week, month, year)
- Applicable for serial connection of 32 players in Master/Slave mode
- Automatic Scene Recovery if the power is accidently cut off
- Mini USB 2.0 (input)
- Windows XP, Vista, 7, 8, 8.1, 10, MAC OS X (10.6 and higher), Linux
- Can transmit up to 1024 DMX channels
- Controlling by DMX; ArtNet
- The device can be connected via USB to the PC in connection with EUROLITE LED PC-Control 512 software
The firmware can be updated via the PC connection
| Power supply: |
9-36 V
Or
5 V DC 500 mA |
| IP classification: |
IP20 |
| Protection class: |
Class III |
| DMX channels: |
Output 1024 |
| Power connection: |
Mains input Mini USB (F) mounting version Power supply cord for USB A mains connection (provided) |
| Control: |
DMX; ArtNet |
| Housing color: |
Black |
| USB port: |
USB 2.0, Typ Mini USB (F) mounting version |
| Color: |
Black |
| PC connect: |
EUROLITE LED PC-Control 512 software via USB, firmware can be updated |
| Dimension: |
Width: 16.6 cm
Depth: 9.7 cm
Height: 3.8 cm |
| Weight: |
0.30 kg |
