Compact DMX Wireless System 2.4 GHz

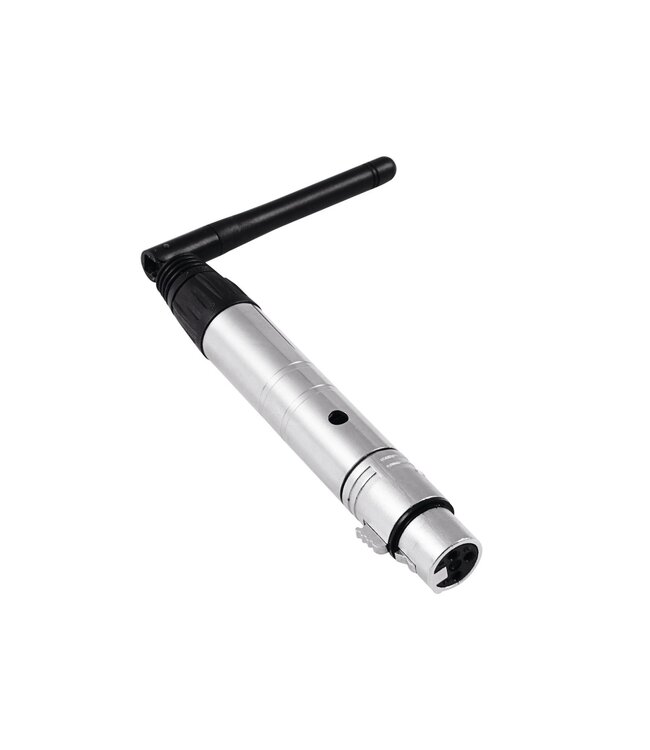

The Eurolite QuickDMX transmitter and receiver is used for wireless transmission of DMX512 signals. The complete technology is integrated in an extended 3-pole XLR connector (female) with a rotatable antenna.

The device is constructed as a transceiver, so it can be used as any transmitter and receiver. The use of this device eliminates the necessity of time-consuming cabling between the DMX lighting control unit and the DMX-controlled devices.

Due to the GFSK technology (Gaussian Frequency Shift Keying), interference-free operation is also possible besides other wireless Bluetooth and WiFi devices.
The range is up to 400 meters with visual contact.
Setup is very easy via Plug & Play with a button for connecting and disconnecting QuickDMX receivers.

Compact wireless DMX receiver 2.4 GHz

• User-friendly 3-pin XLR plug (female) with swivel antenna

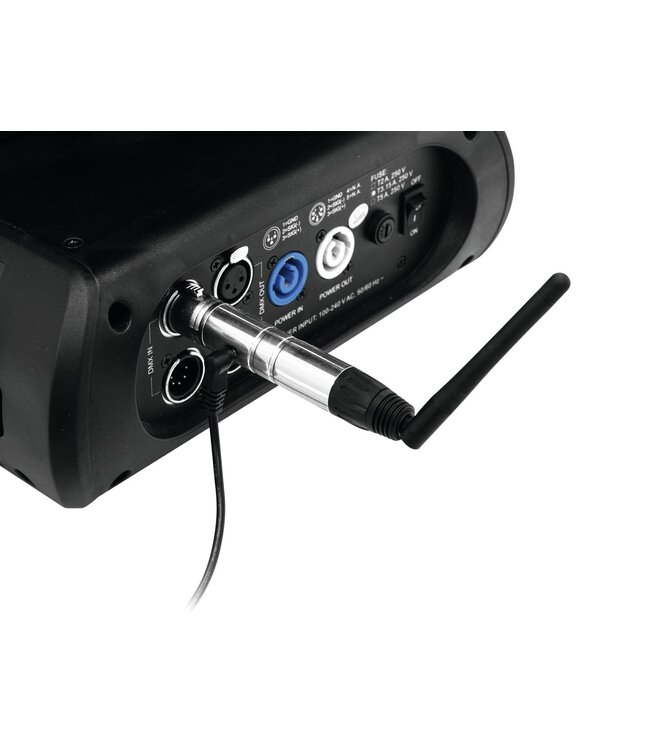

• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver

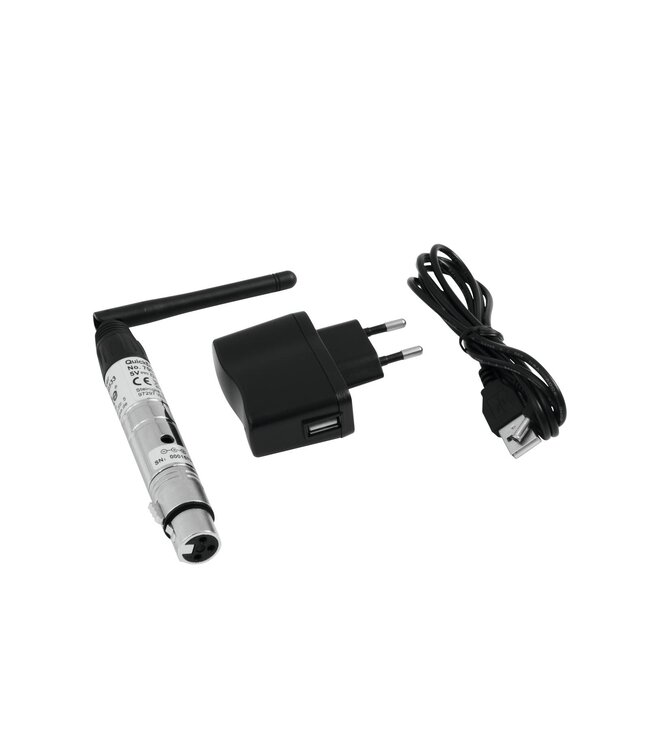

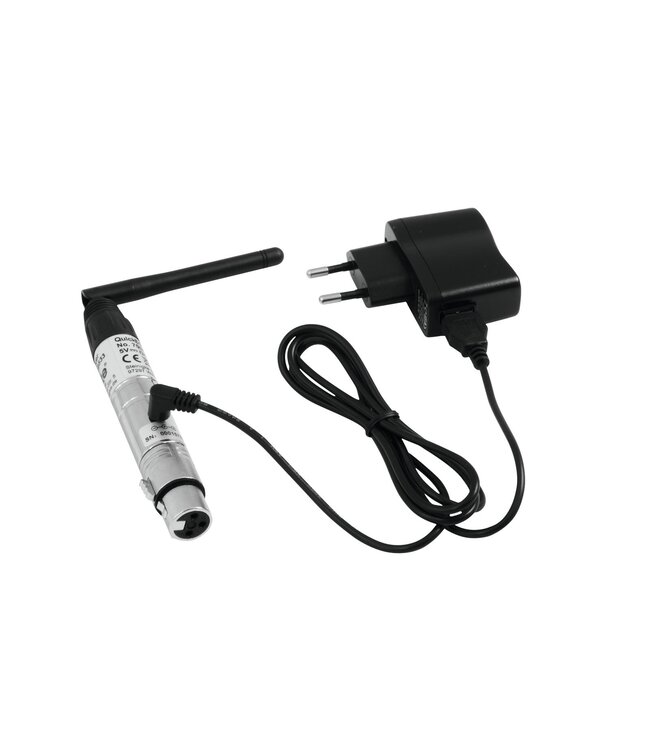

• Powered via included PSU
• 2.4 GHz ISM band - license-free worldwide
• Can receive and process up to 512 DMX channels
• Controlling by DMX; QuickDMX built-in
• Use a operating range up to 400m
