100W scanner - roterende gobo's - 3F prisma - kleurenwiel - gemotoriseerde focus Lees meer.

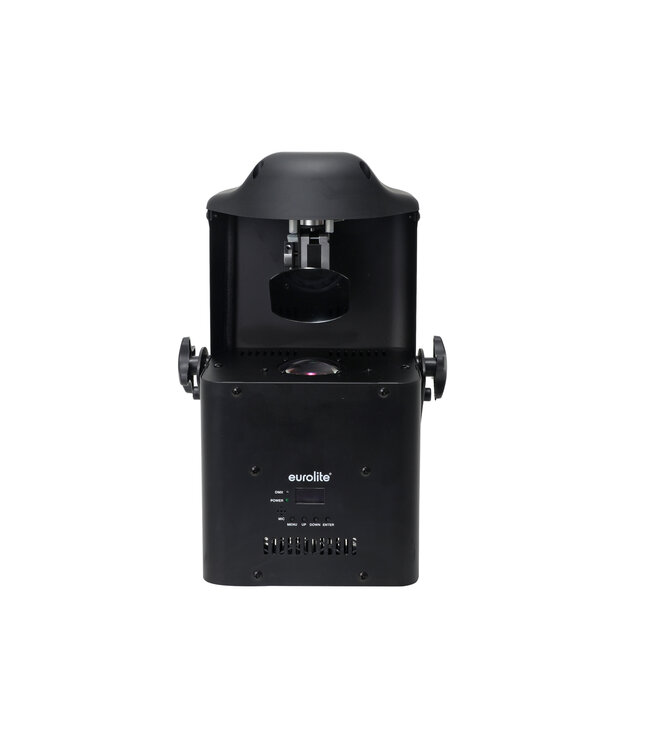

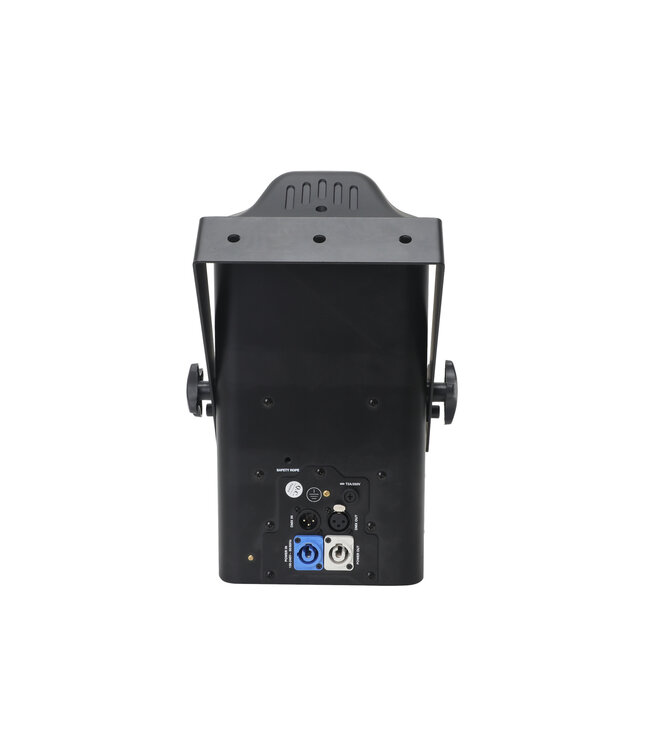

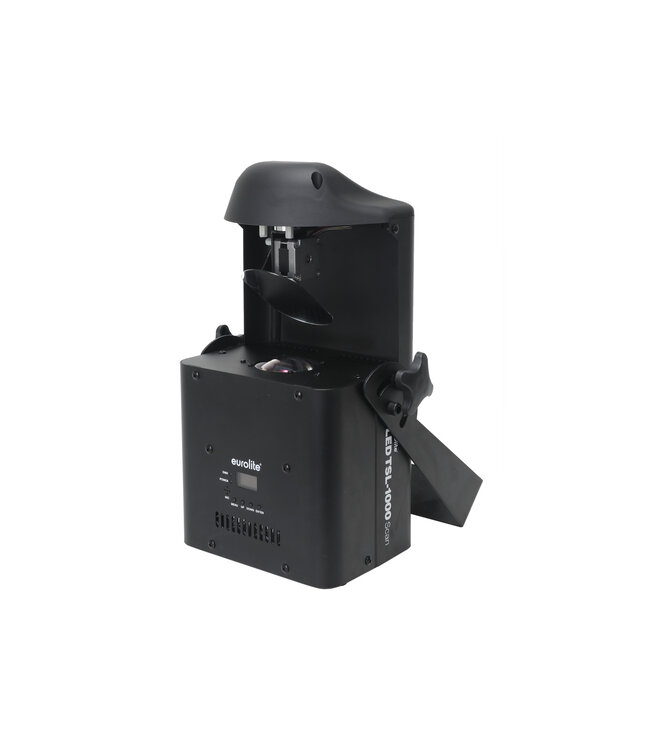

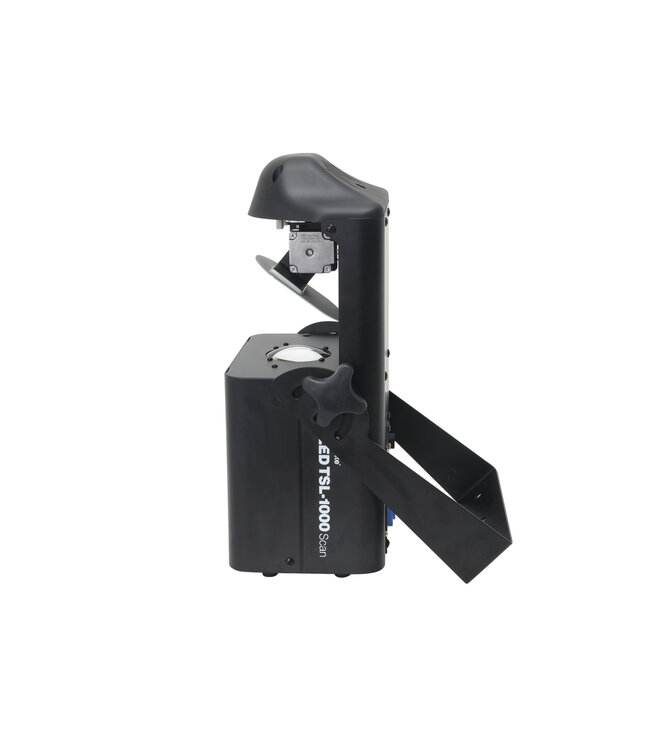

Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 110 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power output: | P-Con (gray), mounting version |
| Fuse: | T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 100 W |
| Color temperature: | 8000K |
| Max. TILT movement: | Exact positioning (16 bit resolution) 50° |
| Max. PAN movement: | Exact positioning (16 bit resolution) 160° |
| Flash rate: | 1 - 25 Hz |
| Equipment: | Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold |
| Color generation: | Color wheel 8 dichroic filters plus open |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Shake effect |
| DMX channels: | 10; 15 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Master/slave function; Sound to light via Microphone |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° |
| Housing color: | Black |
| Dimension: | Width: 25.1 cm Depth: 14.1 cm Height: 37.7 cm |
| Weight: | 5.50 kg |
