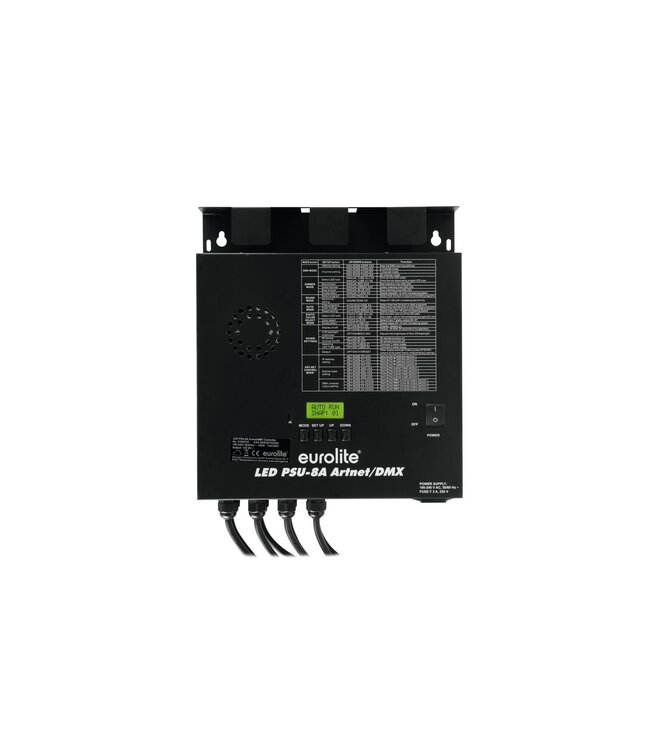

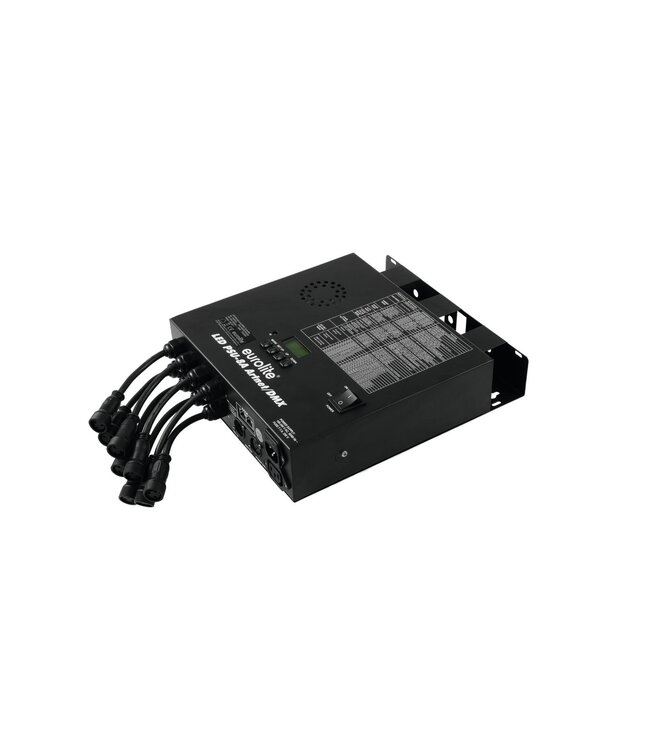

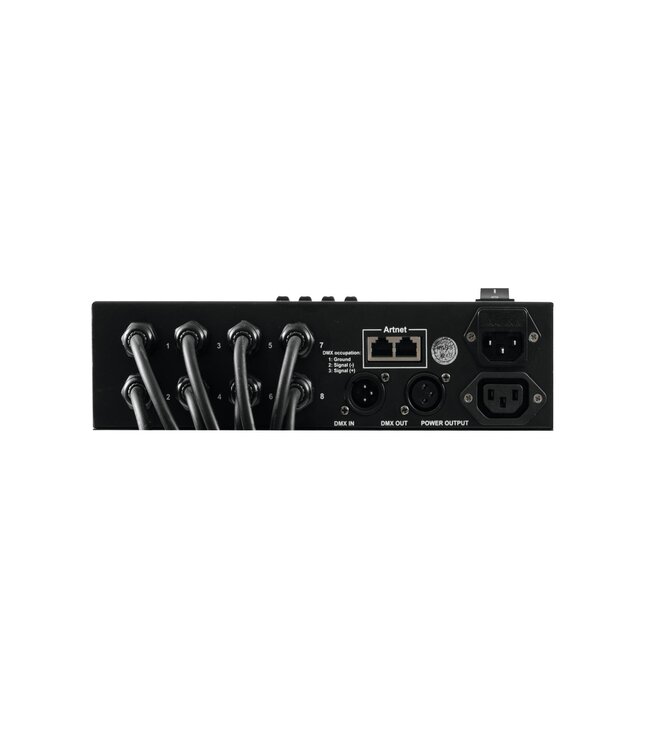

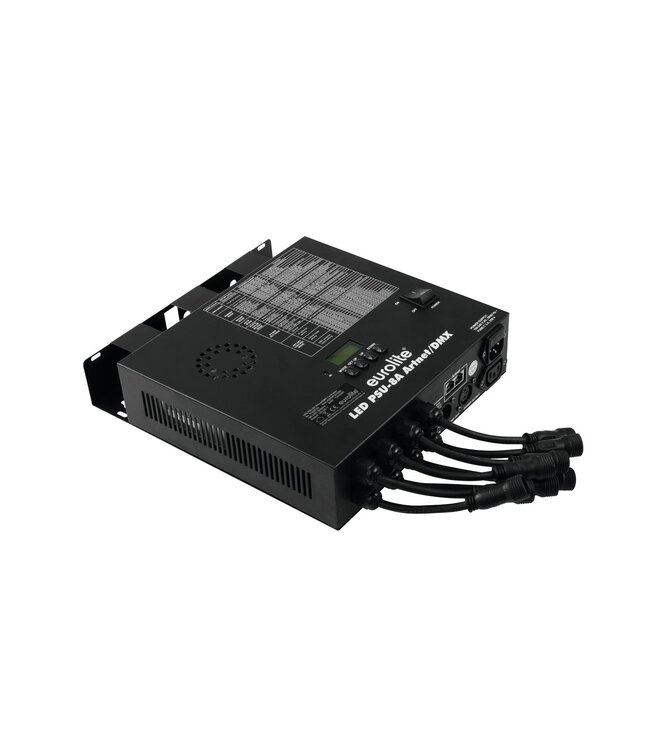

Controller for EUROLITE LED Pixel Tubes 360° Slim
- Controller and power supply unit for 8 LED light tubes
- Suitable for 51928789 EUROLITE LED Pixel Tube 360° Slim clear 1m (not included in the delivery)
- Comfortable addressing and setting via control panel with LCD display
- Functions: Static colors, RGB color blend, internal programs, dimmer, strobe, sensitivity
- Further LCD display settings: display on or off, LED tube selection, default settings
- Pixels individually controllable via Madrix
- Operable in stand-alone mode, via DMX or Art-Net
- Master/Slave for parallel operation of several devices
- Controllable via optional EUROLITE IR remote for LED devices, 51914130
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- Can be operated in 5; 7; 26 CH mode
- Controlling by Stand-alone; ArtNet; DMX; Sound to light via Microphone
- Is in EUROLITE LED PC-Control 512 software already preprogrammed
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
350 W |
| Power output: |
1 x IEC connector (F) mounting version |
| DMX channels: |
5; 7; 26 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Control: |
Stand-alone; ArtNet; DMX; Sound to light via Microphone; EUROLITE LED PC-Control 512 software |
| Output: |
12 V DC; |
| Dimension: |
Width: 27 cm
Depth: 32 cm
Height: 7.6 cm |
| Weight: |
3.45 kg |
