15 watt pinspot COB RGBW Lees meer.

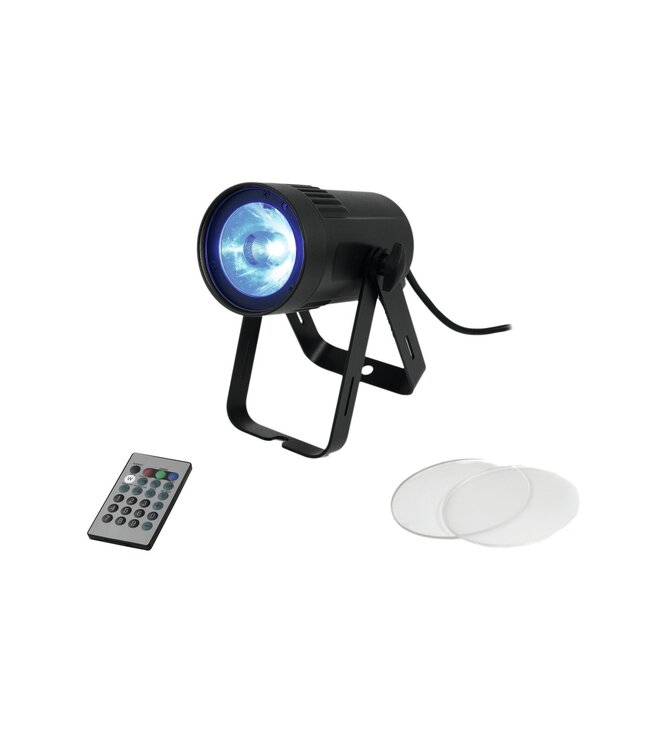

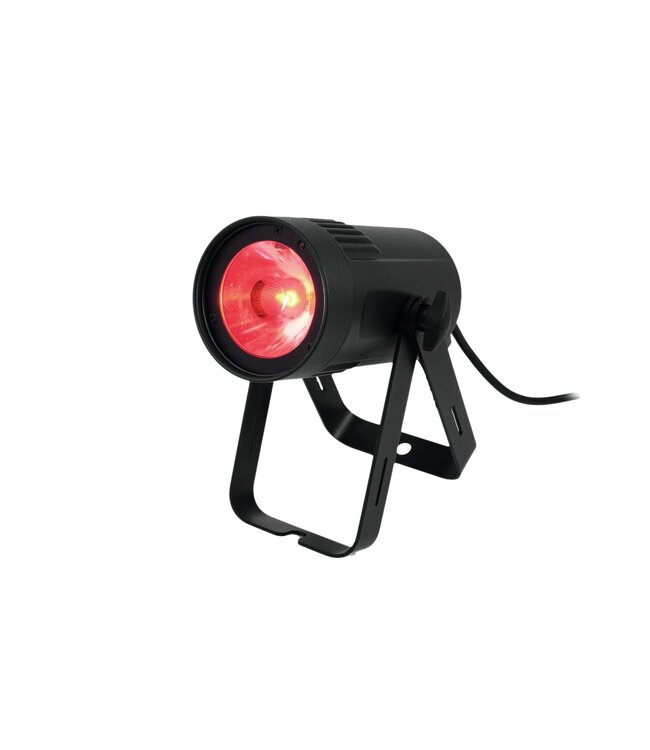

Pinspot with 15 W COB LED, beam angles 4°/6°/20° (frost filter)

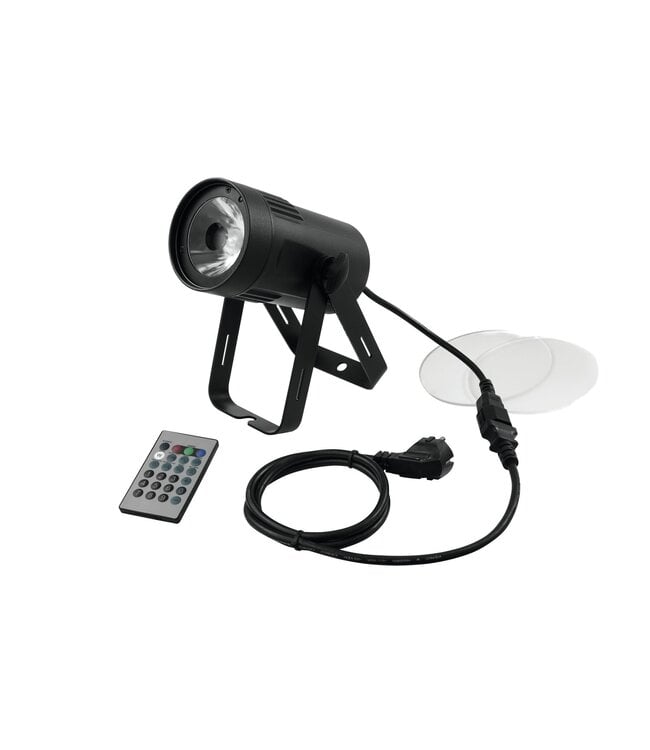

Package contents
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 17 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) power supply cord with safety plug (provided) |
| Power output: | 1 x IEC (F) |
| Lamp type: | LED lamp |
| LED: | 1 x 15 W high-power 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: | 4; 6; 7 |

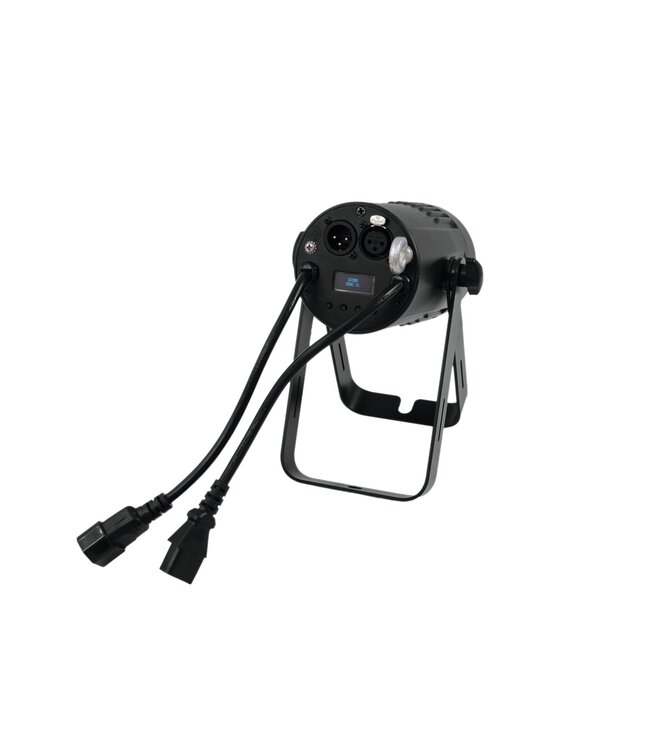

| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; RDM; Master/slave function |
| Preprogrammed in: | Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Beam angle: | 4° |
| Beam angle (1/2 peak): | 4° 6° 20° |
| Beam angle (1/10 peak): | 7° 11° 35° |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Display type: | OLED display |
| Material: | Aluminum casting |
| Dimensions: | Width: 13,5 cm Depth: 19 cm Height: 22 cm |
| Weight: | 1,42 kg |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø10mm; 2 x Ø3mm |
| Material: | Aluminum, 3 mm |
| Power cord | |
| Cable construction: | 3 x 1,0 mm² H05VV-F |
| Cable length: | Approx. 1,3 m |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Diffusor cover | |
| Color: | Frost |
| Dimensions: | Width: 2 mm Diameter: Ø 8,2 cm |
| Lamp clamping ring | |
| Material: | Metal, 2 mm |
| Color: | Black |
