Control and stand-alone programs
The compact light set is controlled via DMX. For operation via wireless DMX, the KLS-190 offers a USB socket into which a Quick DMX receiver can be plugged. But even without external control, 19 well thought-out stand-alone and audio programs each provide a variety of effects. The strobe LEDs can be switched on if desired in addition to the programs.
Flexible setup
The special mounting system of the KLS-190 not only allows the bar to be mounted on a stand, it also allows the stand rod to be pushed through to attach a spotlight or loudspeaker box on top. Up to 4 additional spotlights or effects can also be mounted on the KLS-190 itself. The power supply for these devices can be provided via the cold device output of the bar. A transport bag is included.

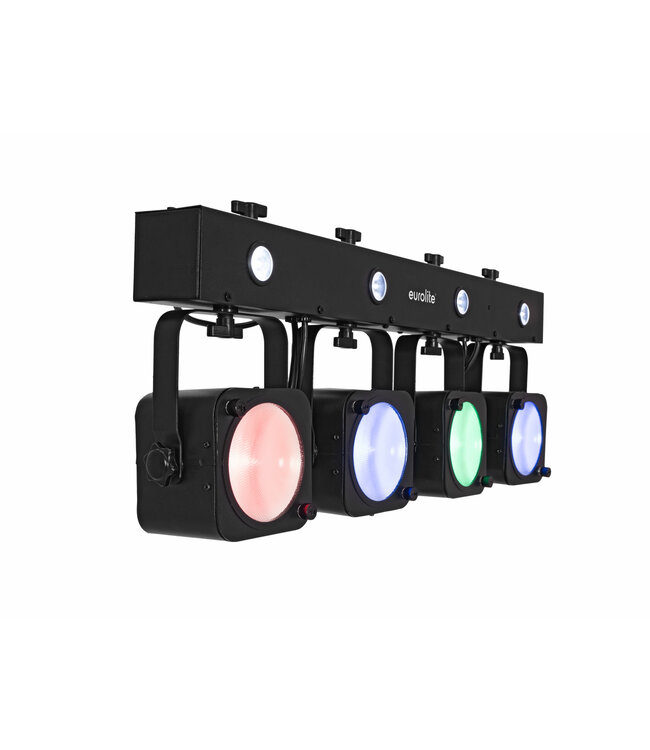

Bar with 4 RGB spots, 4 white strobe LEDs and QuickDMX USB port
- Crossbar with integrated DMX control unit and stand sleeve
- Ultra-light, ideally suited for mobile use
- Suited for installation on a speaker stand (not included) or truss
- Comes pre-assembled with practical transport bag
- One high-power 3in1 LED per spot provides for an exquisite RGB color mix
- Strobe effect with 4 cold white 3 W LEDs
- 2 diffuser cover kits (9° and 42°) for a softer light with varying beam angles included in delivery
- Movable and tiltable spotlights
- Via DMX, each spot can be individually controlled
- 19 professionally designed integrated show programs in auto and music mode
- Direct color selection for 18 preset colors
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Flicker-free projection
- Addressing and setting via control panel with 4-digit LED display
- Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
- Black lacquered metal version with movable mounting bracket
- IEC terminals for power linking up to 8 units
- LED: 4 x COB (chip-on-board) 30 W 3in1 TCL RGB (homogenous color mix)
- LED: 4 x high-power 3 W CW
- Can be operated in 4; 6; 7; 9; 13; 16 CH mode
- The device is cooled by passive convection
- Controlling by DMX; QuickDMX via USB (optional); Sound to light via Microphone; IR remote control included; Master/slave function; Stand-alone
- Is in EASY SHOW; Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
- Effect: Strobe effect
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
60 W |
| IP classification: |
IP20 |
| Lamp type: |
LED lamp |
| LED: |
4 x COB (chip-on-board) 30 W 3in1 TCL RGB (homogenous color mix)
4 x high-power 3 W CW |
| DMX channels: |
4; 6; 7; 9; 13; 16 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
DMX; QuickDMX via USB (optional); Sound to light via Microphone; IR remote control included; Master/slave function; Stand-alone; EASY SHOW; Light J Software; EUROLITE LED PC-Control 512 software |
| Beam angle: |
9° |
| Beam angle (1/2 peak): |
9°
42° |
| Beam angle (1/10 peak): |
20°
72° |
| Housing color: |
Black |
| Dimensions: |
Width: 66,0 cm
Depth: 15,0 cm
Height: 26,5 cm |
| Weight: |
6,29 kg |
