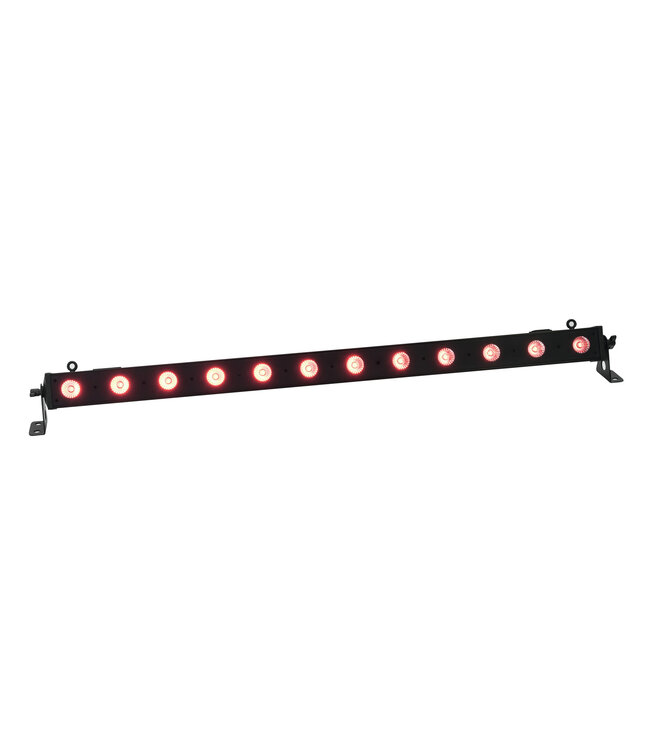

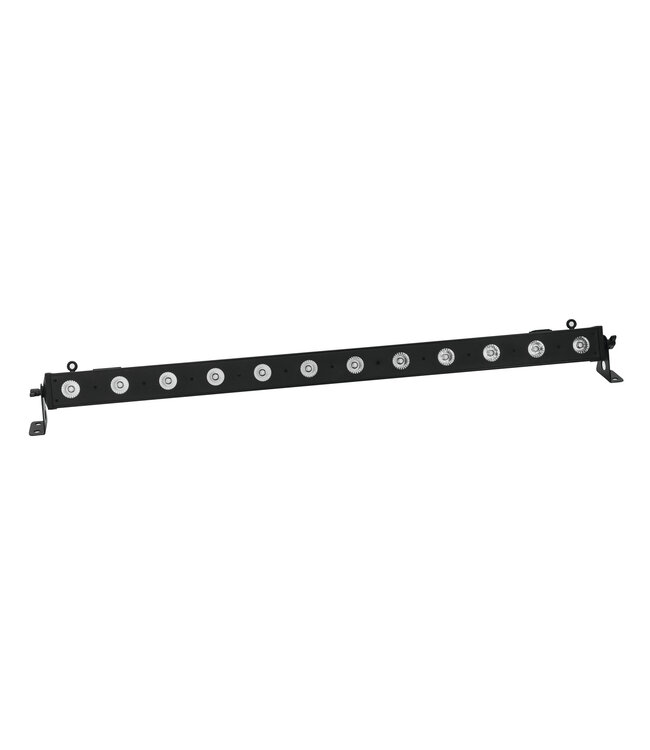

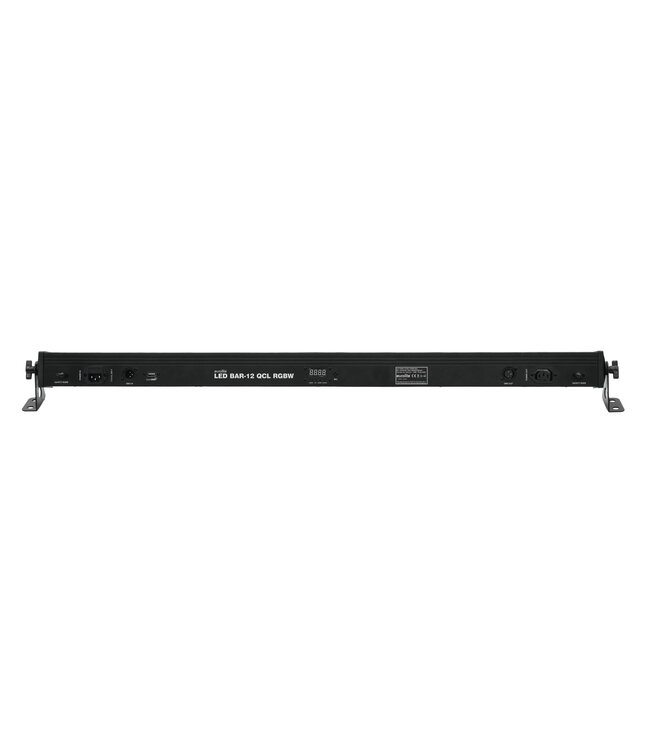

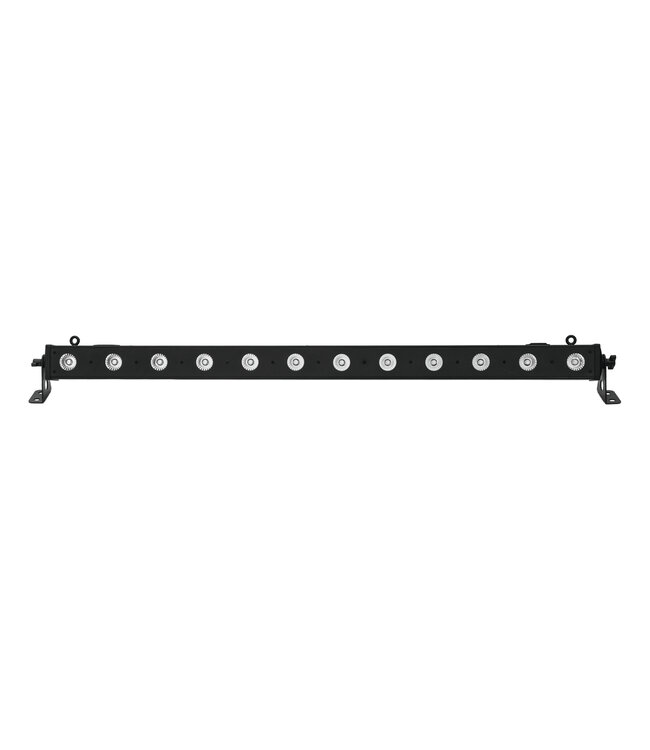

LED bar (110 cm) with 12 x 4 watt 4in1 LED (RGBW)
- Operable in stand-alone mode or via DMX
- Microphone sensitivity adjustable via Control Board
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Comfortable addressing and setting via control board with LED display and four operating buttons
- Functions: Static colors, RGBW color blend, color temperature settings, internal programs, dimmer and strobe settings, Master/Slave
- Hanging as well as standing installation possible
- Locking possibility at the mounting bracket
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 12 x high-power 4 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 2; 4; 5; 6; 9 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional)
- Is in EUROLITE LED PC-Control 512 software; EASY SHOW; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE already preprogrammed
- Flicker-free projection
- Effect: Strobe effect
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
24 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Power output: |
1 x IEC connector (F) mounting version |
| Lamp type: |
LED lamp |
| LED: |
12 x high-power 4 W 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
2; 4; 5; 6; 9 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); EUROLITE LED PC-Control 512 software; EASY SHOW; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE |
| Beam angle: |
17° |
| Beam angle (1/2 peak): |
17° |
| Beam angle (1/10 peak): |
33° |
| Housing color: |
Black |
| Dimensions: |
Length: 1,085 m
Depth: 6,5 cm
Height: 10 cm |
| Weight: |
2,85 kg |
