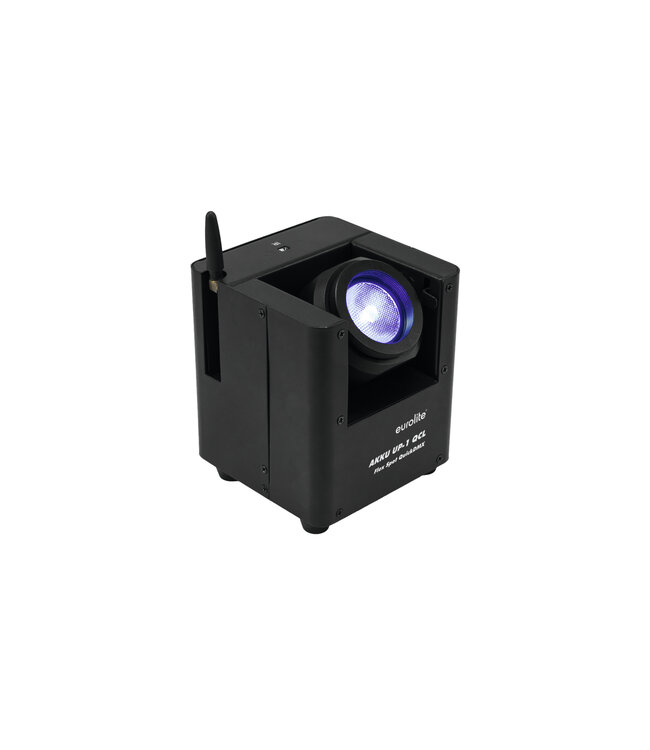

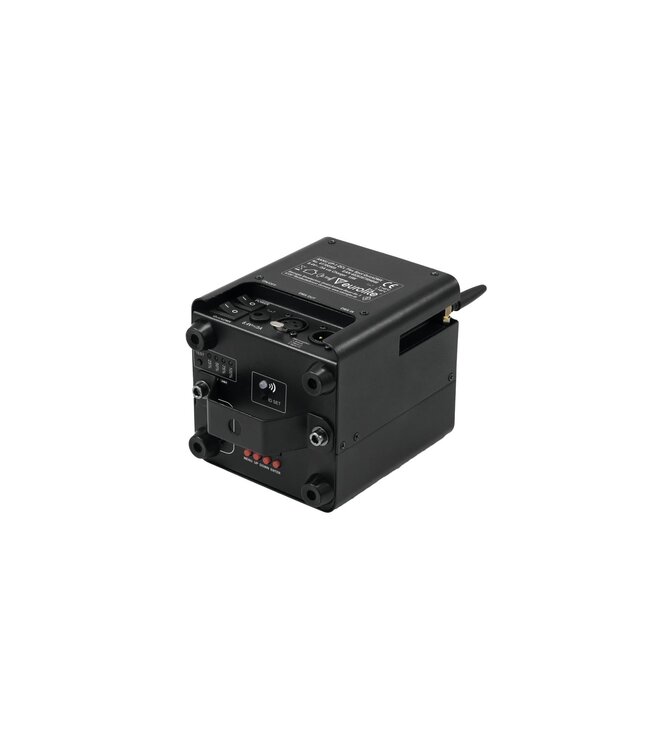

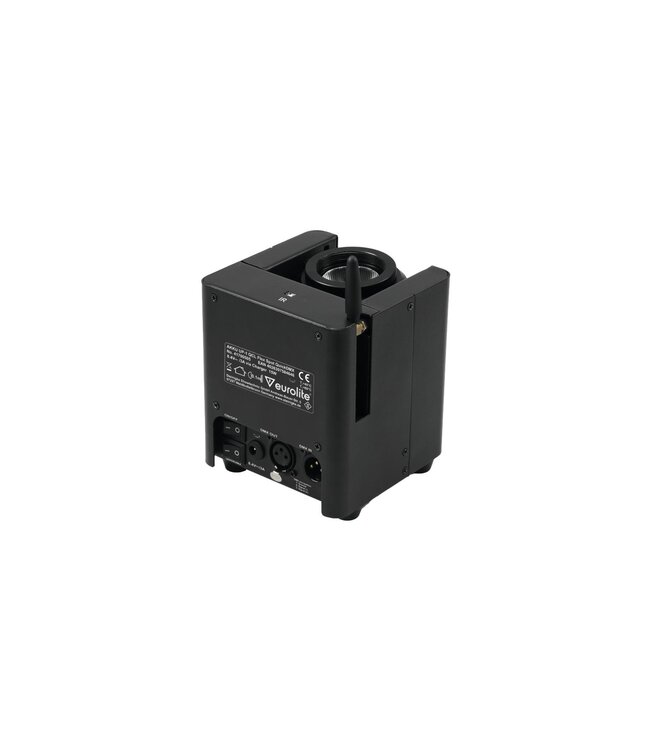

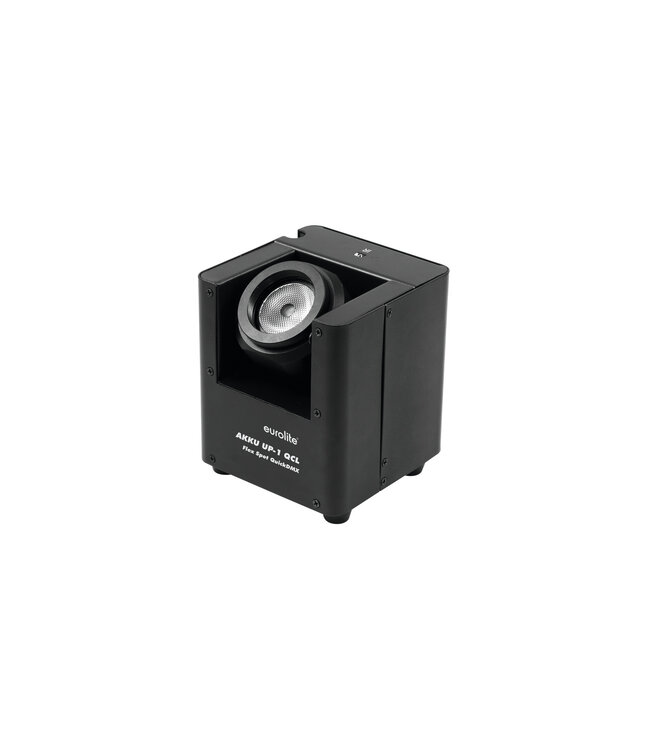

LED Uplight with 15 W 4in1 LED, tiltable head and QuickDMX transceiver
- Compact and bright
- Equipped with a 15 W QCL (quadcolor LED) in red, green, blue and white
- Inclination angle of the LED head manually adjustable
- Beam angle selectable via included lens 9°/15°
- With integrated QuickDMX transceiver for wireless reception of DMX512 signals
- Operation via included power supply unit or built-in rechargeable lithium-ion battery with up to 18 hours operating time
- Integrated automatic charging of the battery with indicator
- Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed
- Dimmer speed (step response) adjustable
- Adjustable microphone sensitivity

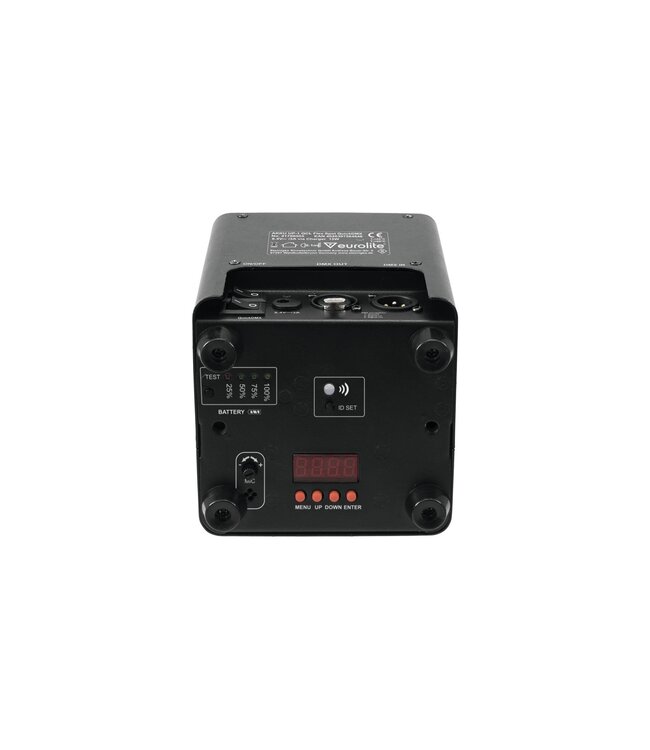

- Addressing via control panel with 4-digit LED display
- Charger included in delivery
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 3; 4; 6; 8; 10 CH mode
- The device is cooled by passive convection
- Controlling by DMX; Stand-alone; QuickDMX built-in; Sound to light via Microphone; IR remote control included
- Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
- Flicker-free projection
- For application areas such as: Small lender; Wedding/gala
| Power consumption: |
15 W |
| IP classification: |
IP20 |
| Power connection: |
Battery/battery pack
Mains input Coaxial power connector (M) Power supply cord with Euro plug (provided) |
| Battery pack type: |
1 x lithium ion 7,4 V, 8800 mAh, 65,12 Wh |
| Battery pack: |
Battery operation up to 18h depending on program used
Recharging time 6h |
| Lamp type: |
LED lamp |
| LED: |
1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: |
3; 4; 6; 8; 10 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
DMX; Stand-alone; QuickDMX built-in; Sound to light via Microphone; IR remote control included; Light J Software; EUROLITE LED PC-Control 512 software |
| Beam angle: |
9° |
| Beam angle (1/2 peak): |
9°
15° |
| Beam angle (1/10 peak): |
18°
30° |
| Housing color: |
Black |
| Carrier frequency: |
2,4 GHz |
| Dimensions: |
Width: 12 cm
Depth: 12 cm
Height: 14,2 cm |
| Weight: |
2,21 kg |
