Physical

• Length: 259mm
• Width: 179mm
• Height: 290mm
• Weight: 3.8 kg without accessories

Dynamic Effects

• beam angle: 15 °

Optics

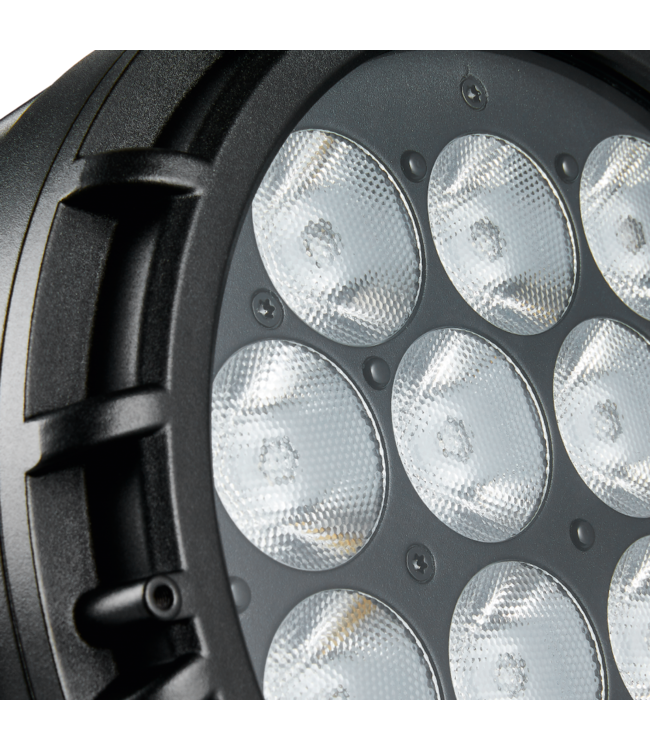

• Light source: 14 pcs high-power LED(RGBW)

Control and Programming

• Control: DMX
• DMX channels: 4 / 6 / 7 / 11 / HSV / HSI
• Setting and addressing: Control panel with backlit LCD graphic display
• Protocol RDM, USITT DMX512-A

Control and Programming

• Color: Black
• Housing High strength die-casting aluminum
• Protection rating: IP 65 (if rubber covers are placed correctly when connectors are not used)

Installation

• Orientation: Any
• Minimum distance to combustible materials: 100mm. from fixture
• Minimum distance to illuminated surfaces: 200mm. from fixture

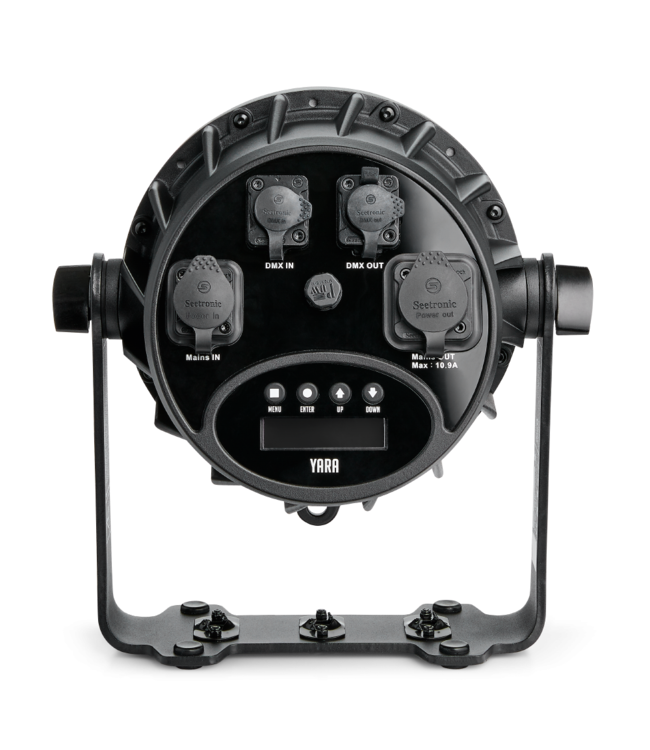

Connections

• AC power input: PowerCON TRUE input socket
• AC power throughput:  PowerCON TRUE output socket
• DMX data in / out: 5 pin locking XLR (3 pin optional)

Electrical

• AC power: 100-240 V nominal, 50/60 Hz
• Maximum total power consumption: 105 W
• Power supply unit: Auto-ranging electronic switch mode
• Power consumption, all effects static, zero light output: <15 W

Power consumption

• 120 V, 60 Hz: 104 W, PF * 0.994
• 240 V, 50 Hz: 102 W, PF * 0.943

* PF = power factor. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Cooling

• Maximum ambient temperature (Ta max.): 40°C
• Minimum ambient temperature (Ta min.): 5°C
• Total heat dissipation (calculated, +/- 10%): 820 BTU/hr.
