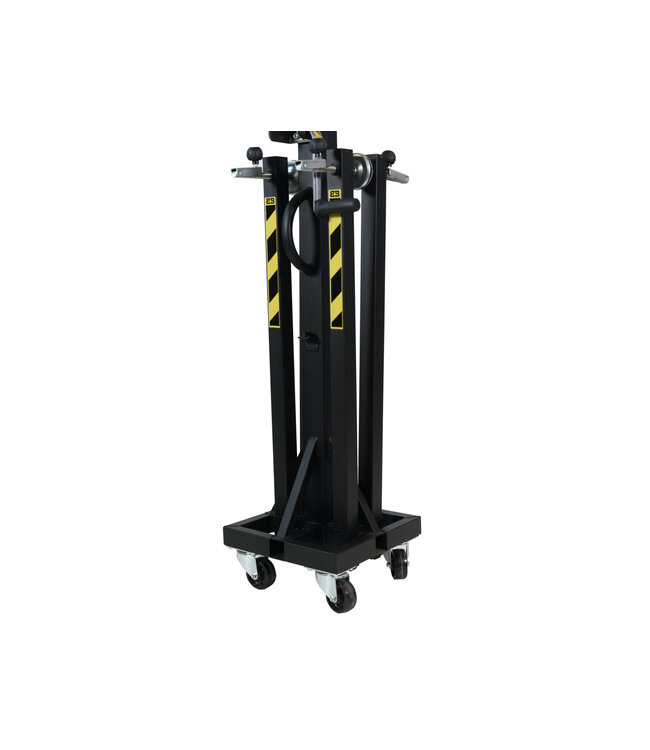

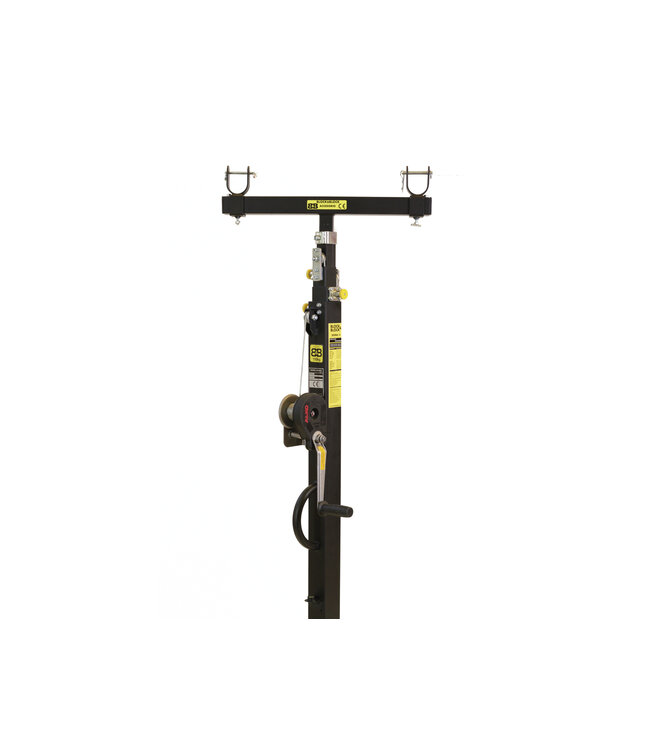

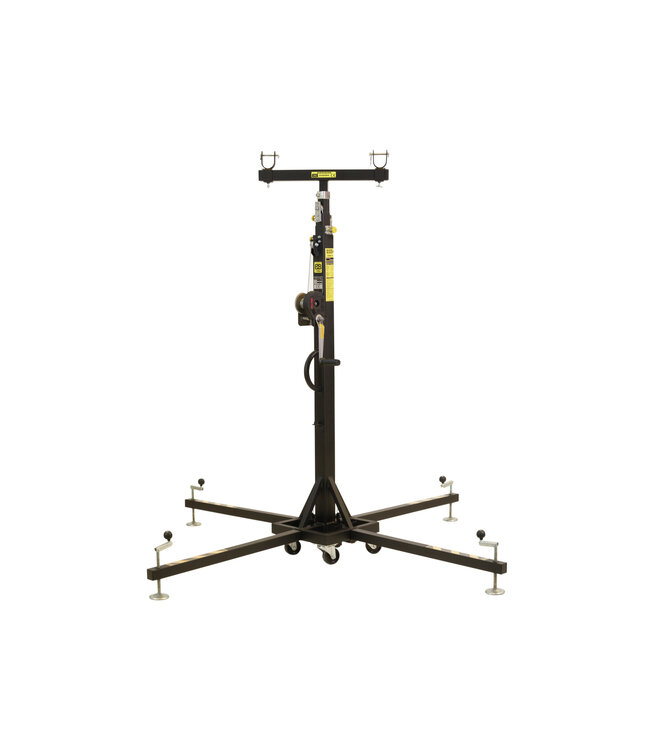

BLOCK AND BLOCK BLOCK AND BLOCK SIGMA-70 Truss lifter 160kg 5.3m
BLOCK AND BLOCK SIGMA-70 Truss lifter 160kg 5.3m

BLOCK AND BLOCK SIGMA-70 Truss lifter 160kg 5.3m


Truss lifter 160kg 5.3m

Op voorraad
bij leverancier. Ontvang in 3 a 7 (werk)dagen
- +
  • High-quality ground support for weights up to 160 kg, made in EUFour-part telescopic ground support
  • 4 mm steel rope
  • Safety bolts to lock the different sections at different heights
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating
  • Water level to ensure a vertical position
  • Earthing connection
  • Transport rolls to move the lift when retracted
  • AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II,
  • EC Machinery Directive 2006/42/CE
  • Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • Made in Europe
  • Maximum carrying capacity: 160 kg
  • Minimum load: 25 kg
  • Nominal tensile strenght of rope: 1770 N/mm²
  • Height: Maximum: 5.30 m above 4 sections / Minimum: 1.70 m
  • Attachment system: Ø 35mm
  • Steel rope: Ø 4 mm
  • Material: Steel (powder-coated)
  • Additional dimensions: 175 cm x 36 cm x 38 cm
  • Base area: Ø 207 cm
  • Weight: 43.50 kg
Product informatie
Artikelcode 59000410
SKU 59000410
EAN 4026397644180
