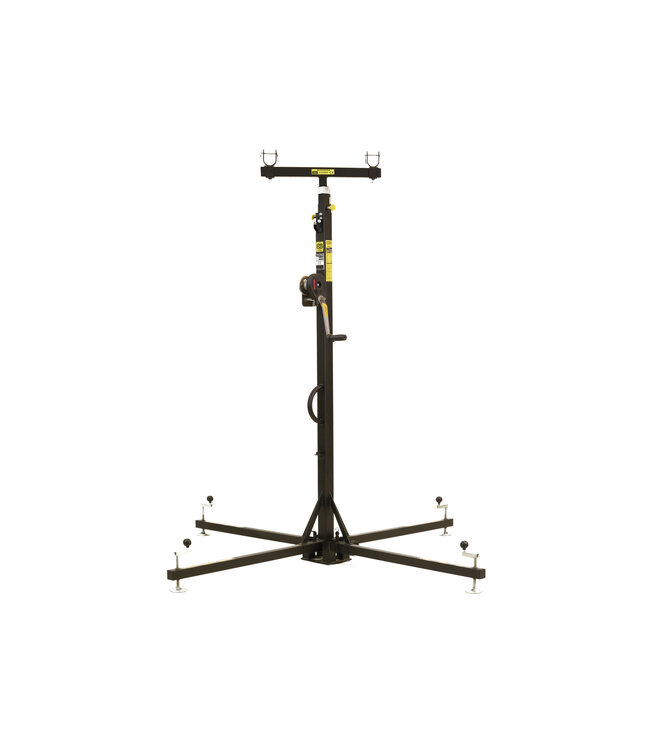

BLOCK AND BLOCK BLOCK AND BLOCK SIGMA-50 Truss lifter 120kg 5m
BLOCK AND BLOCK SIGMA-50 Truss lifter 120kg 5m
€949,00
BLOCK AND BLOCK

BLOCK AND BLOCK SIGMA-50 Truss lifter 120kg 5m

€949,00

Truss lifter 120kg 5m

Op voorraad
Aantal
- +
Productomschrijving
  • High-quality ground support for weights up to 120 kg, made in EUThree-part telescopic ground support
  • 4 mm steel rope
  • Safety bolts to lock the different sections at different heights
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating
  • Water level to ensure a vertical position
  • Earthing connection

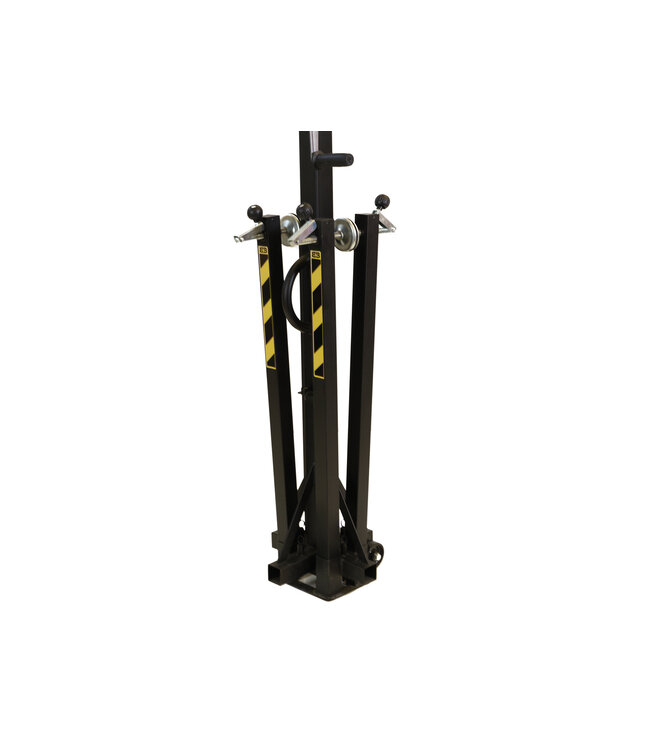

  • Transport rolls to move the lift when retracted

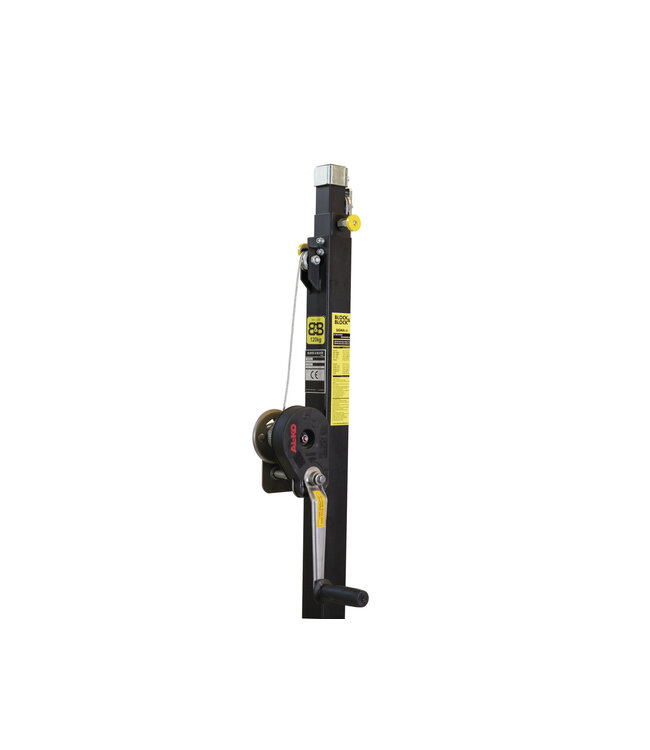

  • AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II,
  • EC Machinery Directive 2006/42/CE
  • Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • Made in Europe
  • Maximum carrying capacity: 120 kg
  • Minimum load: 25 kg
  • Nominal tensile strenght of rope: 1770 N/mm²
  • Height: Maximum: 5.00 m above 3 sections / Minimum: 1.90 m
  • Attachment system: Ø 35mm
  • Steel rope: Ø 4 mm
  • Material: Steel (powder-coated)
  • Additional dimensions: 38 cm x 38 cm x 190 cm
  • Base area: Ø 206 cm
  • Weight: 33.50 kg
Product informatie
Merk BLOCK AND BLOCK
Artikelcode 4026397644173
EAN 4026397644173
