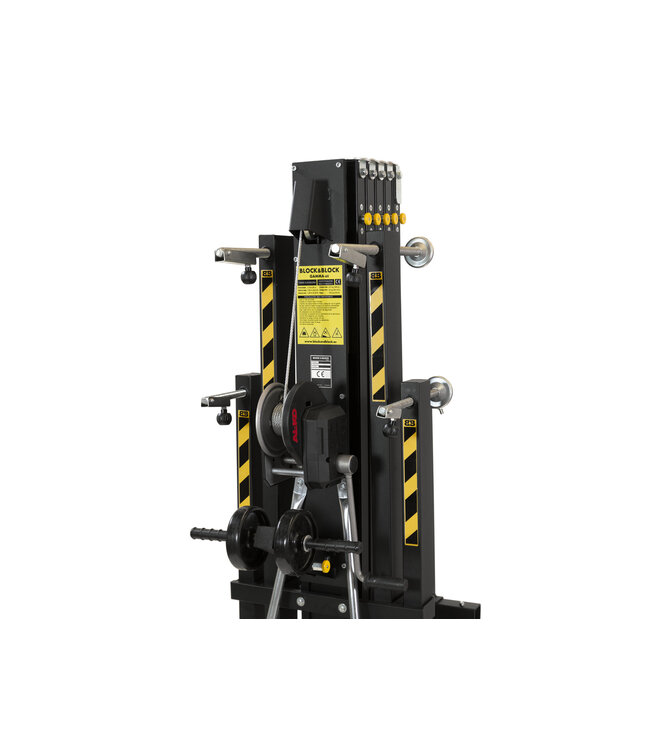

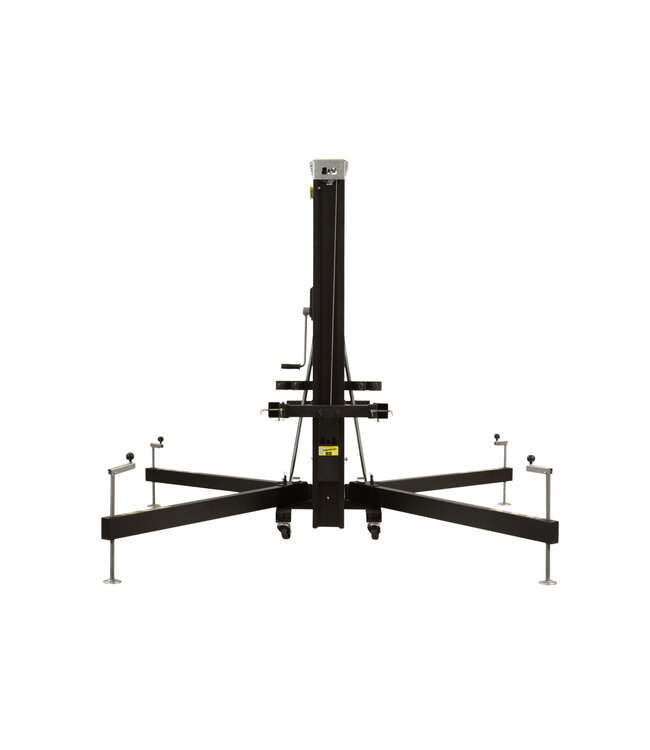

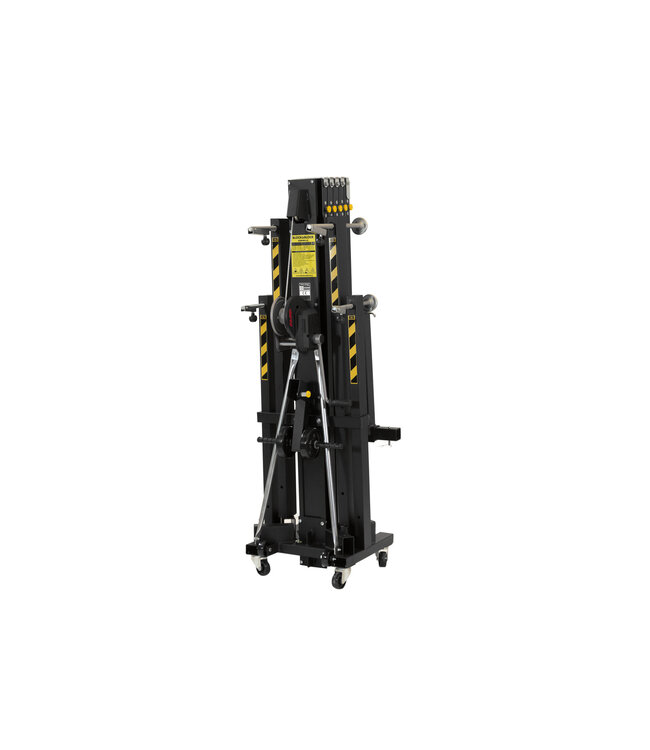

BLOCK AND BLOCK BLOCK AND BLOCK GAMMA-60 Truss lifter 270kg 7.6m
BLOCK AND BLOCK GAMMA-60 Truss lifter 270kg 7.6m
€3.799,00
BLOCK AND BLOCK

BLOCK AND BLOCK GAMMA-60 Truss lifter 270kg 7.6m

€3.799,00

Truss lifter 270kg 7.6m

Op voorraad
Aantal
- +
Productomschrijving
  • High-quality ground support for weights up to 270 kg, made in EU
  • Five-part telescopic ground support
  • 6 mm steel rope
  • Safety bolts to lock the different sections at different heights
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating
  • Water level to ensure a vertical position
  • Earthing connection
  • Transport rolls to move the lift when retracted
  • AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of
  • conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II,
  • EC Machinery Directive 2006/42/CE
  • Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • Maximum carrying capacity: 270 kg
  • Minimum load: 40 kg
  • Nominal tensile strenght of rope: 1770 N/mm²
  • Height:Maximum: 7.6 m above 5 sections / Minimum: 0.3 m
  • Steel rope: Ø 6 mm
  • Material: Steel (powder-coated)
  • Additional dimensions:
  • Base area: Ø 210 cm
  • Weight: 150.00 kg
Product informatie
Merk BLOCK AND BLOCK
Artikelcode 4026397644968
EAN 4026397644968
