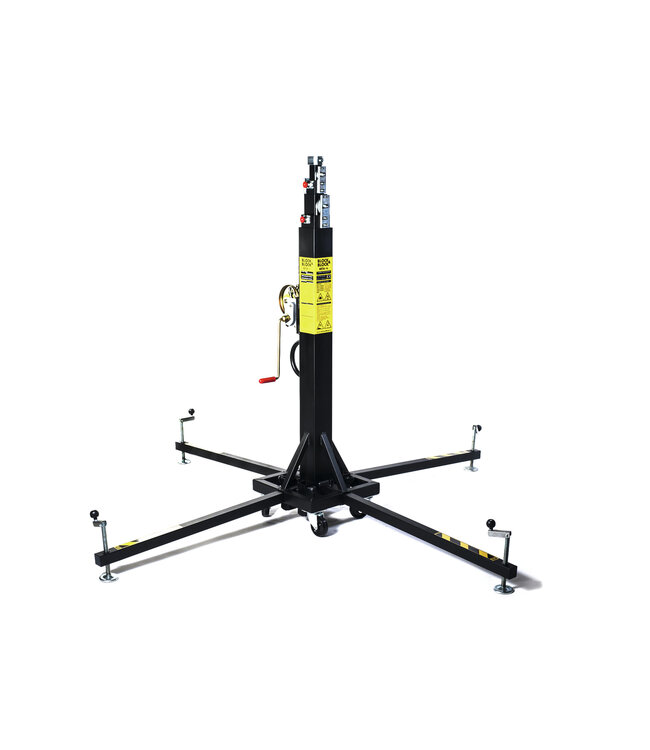

BLOCK AND BLOCK BLOCK AND BLOCK BETA-70 Truss lifter 230kg 6.5m
BLOCK AND BLOCK BETA-70 Truss lifter 230kg 6.5m
€1.599,00
BLOCK AND BLOCK

BLOCK AND BLOCK BETA-70 Truss lifter 230kg 6.5m

€1.599,00

Truss lifter 230kg 6.5m

Backorder
Levertijd op aanvraag
Aantal
- +
Productomschrijving
  • High-quality ground support for weights up to 230 kg, made in EUFive-part telescopic ground support
  • 6 mm steel rope
  • Safety bolts to lock the different sections at different heights
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating

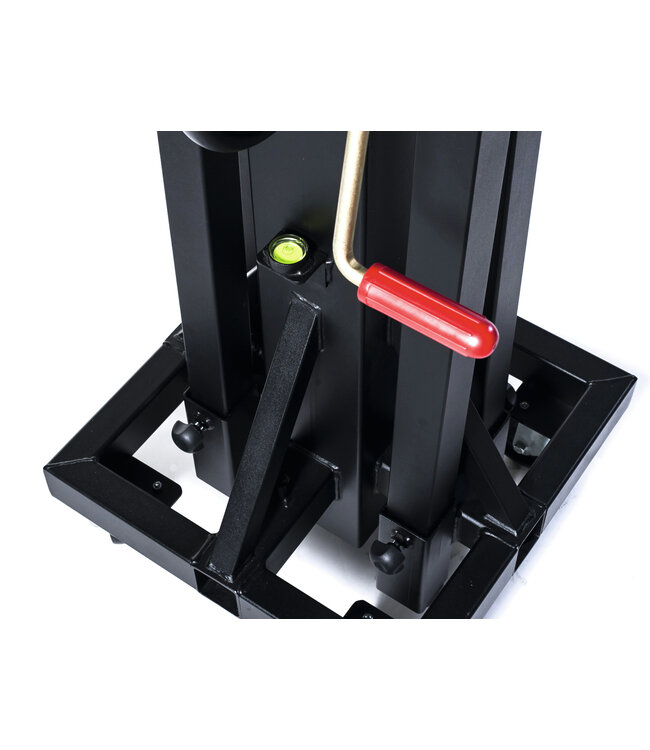

  • Water level to ensure a vertical position
  • Earthing connection
  • Transport rolls to move the lift when retracted
  • AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of
  • conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II,
  • EC Machinery Directive 2006/42/CE
  • Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • Made in Europe
  • Maximum carrying capacity: 230 kg
  • Minimum load: 25 kg
  • Nominal tensile strenght of rope: 1770 N/mm²
  • Height: Maximum: 6.50 m above 5 sections / Minimum: 1.80 m
  • Attachment system: 38mm (Block and Block)
  • Steel rope: Ø 6 mm
  • Material: Steel (powder-coated)
  • Additional dimensions: 185 cm x 46 cm x 48 cm
  • Base area: Ø 252 cm
  • Weight: 97.50 kg
Product informatie
Merk BLOCK AND BLOCK
Artikelcode 59000412
SKU 59000412
EAN 4026397644197
