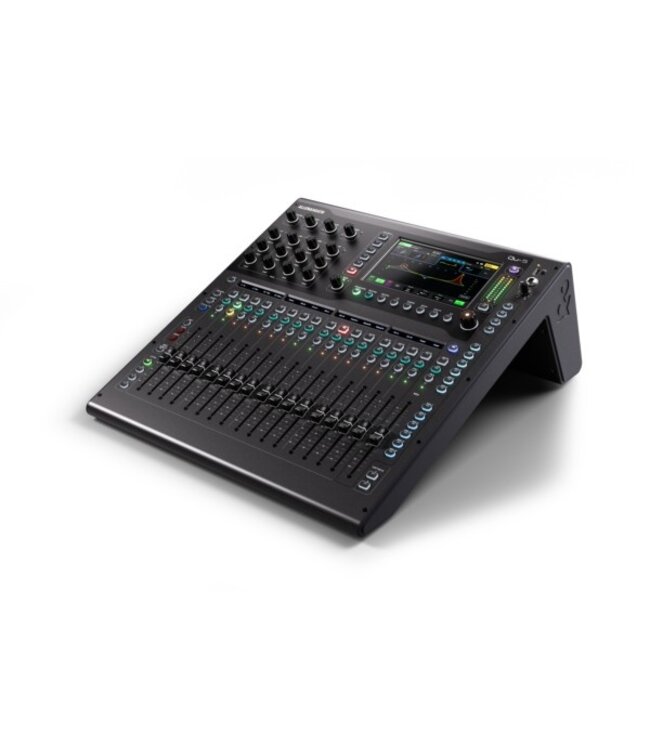

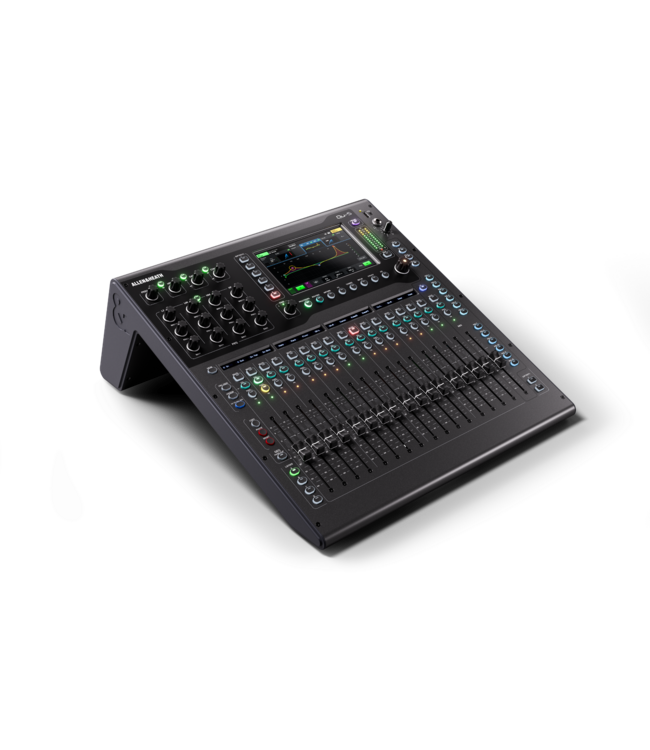

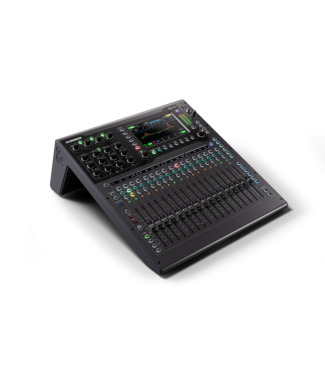

Inputs

• Mic/Line Inputs
  • Balanced Combi XLR/Jack
  • Volledig recallable preamp
  • Input Sensitivity: -60 tot +0 dBu
  • Preamp Gain: 0 tot +60 dB (1 dB stappen)
  • TRS: vaste -20 dB Pad
  • Max. Input Level: +16 dBu (XLR/Jack) / +30 dBu (TRS met pad)
  • Input Impedance: >1.5 kΩ (Mic) / >20 kΩ (TRS)
  • THD+N @ unity gain (0 dB): 0.002% (-92 dB)
  • THD+N @ mid gain (+30 dB): 0.004% (-88 dB)
  • Phantom Power: +48 V (±3 V / -2 V)
• Stereo Line Inputs
  • Balanced, 2× ¼" TRS jack
  • Nominal Sensitivity: +4 dBu
  • Trim: ±24 dB
  • Max. Input Level: +21 dBu
  • Input Impedance: >6 kΩ

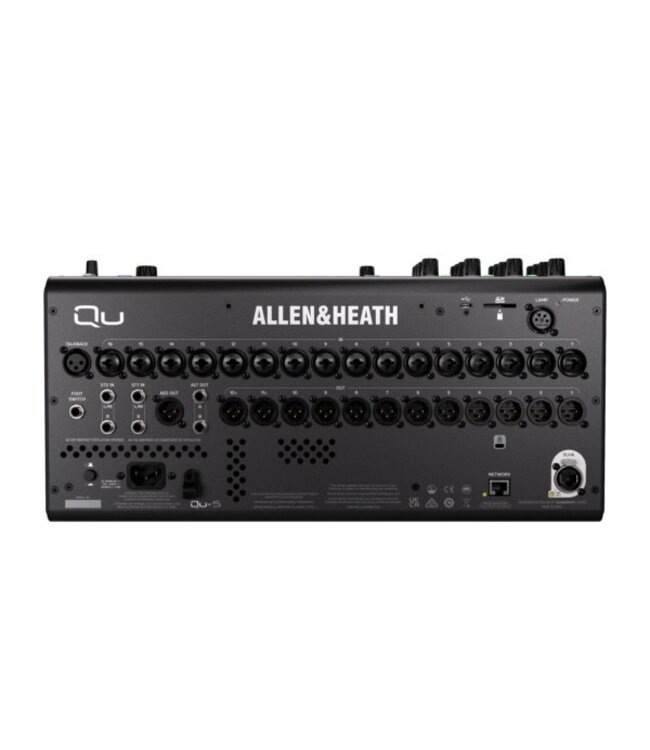

Outputs

• Analoge Outputs
  • XLR Outputs: gebalanceerd
  • Outputs A & B: gebalanceerd ¼" TRS jack
  • Volledig patchable bron
  • Output Impedance: <75 Ω
  • Nominal Output: +4 dBu = 0 dB meter
  • Max. Output Level: +22 dBu
  • Residual Output Noise: -88 dBu (muted, 20 Hz–20 kHz)
• AES Digital Output
  • Gebalanceerd XLR, 2 kanaals
  • Standaard 96 kHz (SRC bypass)
  • Schakelbare sample rates: 44.1 / 48 / 88.2 / 96 kHz
  • 2.5 Vpp gebalanceerd, 110 Ω terminated

SLink / Stagebox verbinding

• Neutrik EtherCON (RJ45)
• dSnake mode: 40 in / 20+40 (ME) uit @ 48 kHz
• DX mode: 32 in / 32 uit @ 96 kHz
• GigaACE / GX: 128 in / 128 uit @ 96 kHz
• Volledig patchable inputs & outputs
• Assignable als audio clock bron met 48↔96 kHz SRC

USB Audio & Recording

• Qu-Drive (USB-A of SD-kaart)
  • Stereo Record: 2 kanaals WAV, 48/96 kHz, 24-bit
  • Stereo Playback: 1/2 kanaals WAV, 44.1/48/96 kHz, 16/24-bit
  • Multitrack Record (SDHC): 16 ch @ 96 kHz / 32 ch @ 48 kHz, 24-bit WAV
  • Multitrack Playback (SDHC): hetzelfde als record
  • SD-kaart aanbeveling: SDHC 32 GB, UHS-I, Class 10
• USB Audio Streaming (USB-C)
  • USB 2.0, Core Audio compliant, ASIO/WDM (Windows)
  • Send (upstream): 32 kanaals @ 48/96 kHz, 24-bit
  • Return (downstream): 32 kanaals @ 48/96 kHz, 24-bit

Algemene Systeem Specificaties

• 38 inputs, 28 bussen, XCVI Core
• Dynamic Range: 110 dB
• Frequency Response: +0 / -0.5 dB (20 Hz – 20 kHz)
• Headroom: +18 dB
• THD+N (Mic/Line → Main L/R, unity gain): 0.005% (-87 dB)
• Sampling Rate: 96 kHz
• Latency: <0.7 ms (Local Mic In → Main L/R)
• Max. Power Consumption: 70 W (Qu-5) / 75 W (Qu-5D)
• Operating Temperature: 0 °C tot 40 °C
• Voeding: 100–240 V AC, 50/60 Hz

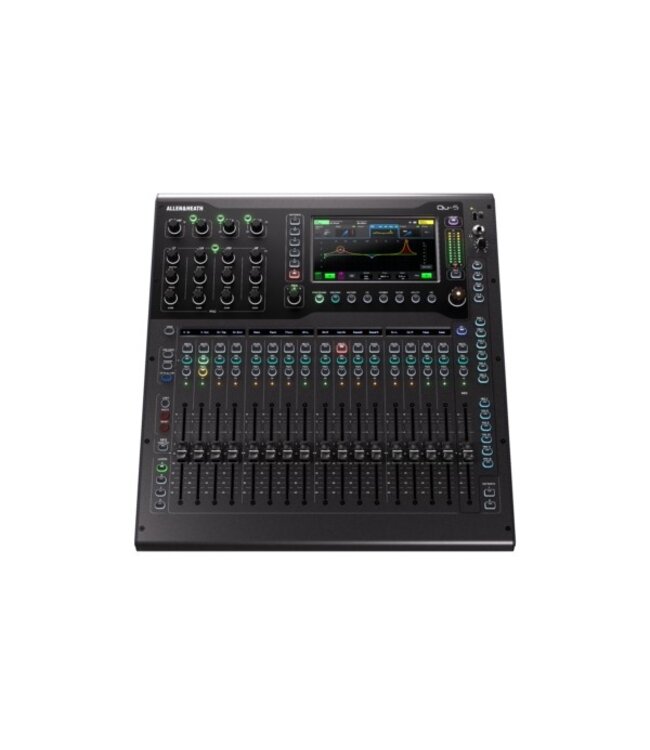

Bediening & Interface

• Touchscreen: 7" capacitief, 800 × 480, 24-bit RGB
• SoftKeys: 8
• Mute Groups / DCA Groups: 8 / 8
• Netwerk: TCP/IP Ethernet (control + MIDI)
• MIDI: USB-C en TCP/IP
• Footswitch: single/dual, momentary/latching

Input Processing (kanalen 1–32 + ST1/ST2/USB)

• Polarity: Normal/Invert
• Trim: ±24 dB
• HPF: 12/18/24 dB/oct, 20 Hz – 2 kHz
• Insert: volledig patchable (digitaal/analoog/-10 dBV)
• Delay: tot 341 ms
• Gate + sidechain filters
• 4-band PEQ volledig parametrisch
• Compressor met sidechain, ducker, DEEP opties, parallel compression

Mix Processing

• Insert, Delay (tot 682 ms)
• Feedback Assistant: 16 filters per mix, 8 gelijktijdig
• GEQ: 28 bands 31 Hz–16 kHz (±12 dB)
• PEQ & Compressor: zelfde als input

FX

• 6× FX engines (send/return of insert)
• Types: o.a. Reverb, Delay, Chorus, Flanger, Phaser, ADT
• 6× stereo FX returns met PEQ, fader, pan, mute, routing

Overige Audio Tools

• PAFL: PFL of AFL, met delay tot 682 ms
• Talkback: dedicated input, HPF, assignable
• Signal Generator: Sine/White/Pink/Noise
• RTA: 31-band stereo of 61-band mono
• AMM: 32 kanaals gain sharing met priority

Afmetingen & Gewicht

• Qu-5 / Qu-5D
  • Unit: 440 × 476 × 213 mm (17.3" × 18.7" × 8.4")
  • Verpakt: 570 × 640 × 310 mm (22.5" × 25.2" × 12.2")
  • Gewicht onverpakt: 10 kg
  • Gewicht verpakt: 12.6 kg
